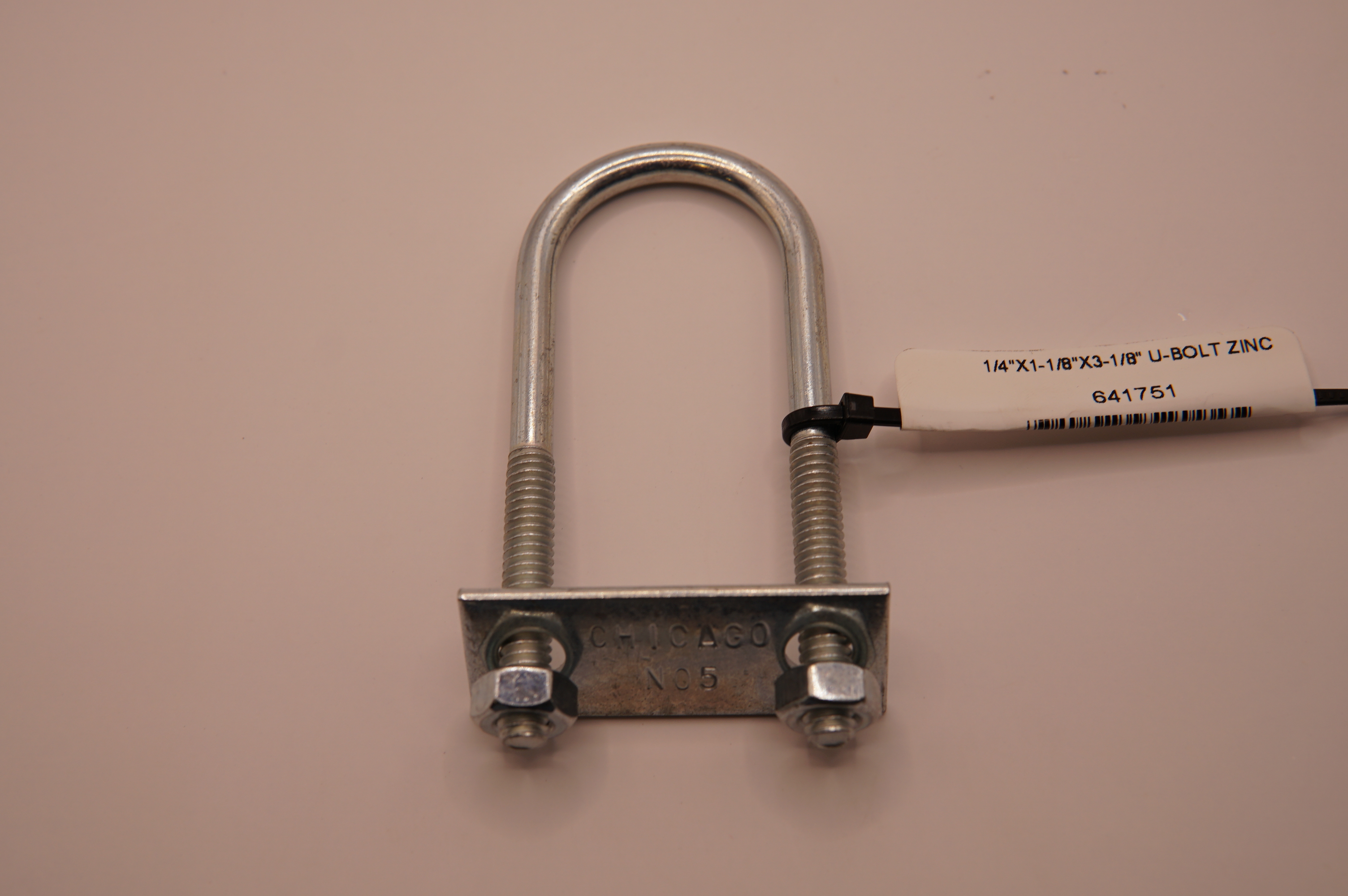

1/4" X 1-1/8" X 3-1/8" U-Bolt w/ MP Zinc
Item Number: 502238
$2.65
/ Each
Package Quantity:
1
- Round bend U-bolt sized for 3/4" nominal steel or wrought iron pipe. Long-length version with 3-1/8" legs and 1/4"-20 NC rolled thread. Anchors pipe, conduit, tubing, round bar, cable or rope to a flat surface.
- Inside 1-1/8" x 3-1/8", outside 1-1/8" x 3-3/8", 1-1/2" thread each leg.
- Zinc plated steel. Plate 3/4" x 2" x 1/16". Two hex nuts included.
- Thread 1/4"-20 UNC, NC rolled
- Inside 1-1/8" wide x 3-1/8" deep; overall 1-1/8" wide x 3-3/8" long
- Mounting plate 3/4" wide x 2" long x 1/16" thick, low carbon cold rolled steel with rounded edges
- Supplied with mounting plate and two hex nuts
- Zinc plated for corrosion resistance
- Fits 3/4" nominal steel or wrought iron pipe (1.050" OD)
- Long-length version - 3-1/8" legs with 1-1/2" of thread for deeper mounts
- Includes mounting plate and two hex nuts - ready to install
$2.65
/ $2.65 Each
In Stock
Details
Vendor
Chicago Hardware (1231)
Weight (lbs)
0.12
Thread Size
1/4"-20 UNC
Thread Length (TL)
1-1/2"
Inner Dimensions (ID)
1/4" X 1-1/8" X 3-1/8"
Overall Dimensions (OD)
1/4" X 1-1/8" X 3-3/8"
Plate Dimensions (P)
1/16" X 3/4" X 2"
For Pipe Size
3/4" nominal
Bend Type
Round Bend, Long Length
Material
Low Carbon Steel
Finish
Zinc Plated
Includes
U-bolt, mounting plate, 2 hex nuts
Key Features
- Fits 3/4" nominal steel or wrought iron pipe (1.050" OD)
- Long-length version - 3-1/8" legs with 1-1/2" of thread for deeper mounts
- Includes mounting plate and two hex nuts - ready to install
- Zinc plated low carbon steel for corrosion resistance
- Round bend profile for pipe, conduit, tubing, round bar and cable
