Stainless Steel Plate
Stainless Steel Plate in Type 304/304L is a highly corrosion-resistant material offering strength and formability comparable to structural steels. It is suitable for food processing, chemical equipment, marine components, and architectural uses.
In its annealed state, Stainless Steel Plate is non-magnetic and not hardenable by heat treatment. However, it can be strengthened through cold working, making it versatile for both structural and precision fabrication projects.
Type 304L Stainless Steel Plate features a low carbon content (0.03% max), which helps reduce carbide precipitation during welding. This allows the material to maintain its corrosion resistance even in heat-affected zones.
Stainless Steel Plate in Type 304/304L is a highly corrosion-resistant material offering strength and formability comparable to structural steels. It is suitable for food processing, chemical equipment, marine components, and architectural uses.
In its annealed state, Stainless Steel Plate is non-magnetic and not hardenable by heat treatment. However, it can be strengthened through cold working, making it versatile for both structural and precision fabrication projects.
Type 304L Stainless Steel Plate features a low carbon content (0.03% max), which helps reduce carbide precipitation during welding. This allows the material to maintain its corrosion resistance even in heat-affected zones.
Specifications
Available Stock Sizes
1ft x 1ft, 1ft x 2ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 5ft x 10ft, or Custom Cut to Size.
Chemical Composition
Carbon: 0.08% max, Chromium: 18-20%, Nickel: 8-10.5%, Manganese: 2% max, Phosphorus: 0.045% max, Sulfur: 0.03% max, Silicon: 1% max, Iron: Balance.
Measurement Guide
Thickness (A) x Width x Length.
PageTitle
304 304L Stainless Steel Plate, Corrosion Resistant Sheet for Marine, Food, and Fabrication
Specifications
ASTM A240, AISI 304/304L, AMS 5513/5511.
Surface Finish
Mill Finish, Slightly Grainy Surface, Non-reflective, No. 2B Finish Available.
Workability
Easy to Weld, Cut, Form, and Machine with proper equipment.
Additional Notes
Stock lengths may vary +/- 1/4". Custom cut tolerances available.
If polished or specialty finishes are required, please contact an Account Manager.
If polished or specialty finishes are required, please contact an Account Manager.
Applications
Used in dairy, beverage, and food industries, as well as architectural, marine, chemical processing, and medical applications.
Commonly used in pressure containment, base plates, gussets, structural support, aerospace, and food/beverage processing.
Commonly used in pressure containment, base plates, gussets, structural support, aerospace, and food/beverage processing.
Mechanical Properties
Ultimate Tensile Strength: 73,200 psi (310 MPa).
Yield Tensile Strength: 31,200 psi (276 MPa).
Brinell Hardness: 123.
Rockwell Hardness: B70.
Density: 0.289 lb/in³ (8.0 g/cc).
Melting Point: 2,550 - 2,651°F (1,400 - 1,455°C).
Yield Tensile Strength: 31,200 psi (276 MPa).
Brinell Hardness: 123.
Rockwell Hardness: B70.
Density: 0.289 lb/in³ (8.0 g/cc).
Melting Point: 2,550 - 2,651°F (1,400 - 1,455°C).
Filter by
Clear Filters
Displaying 1 - 10 of 10 results

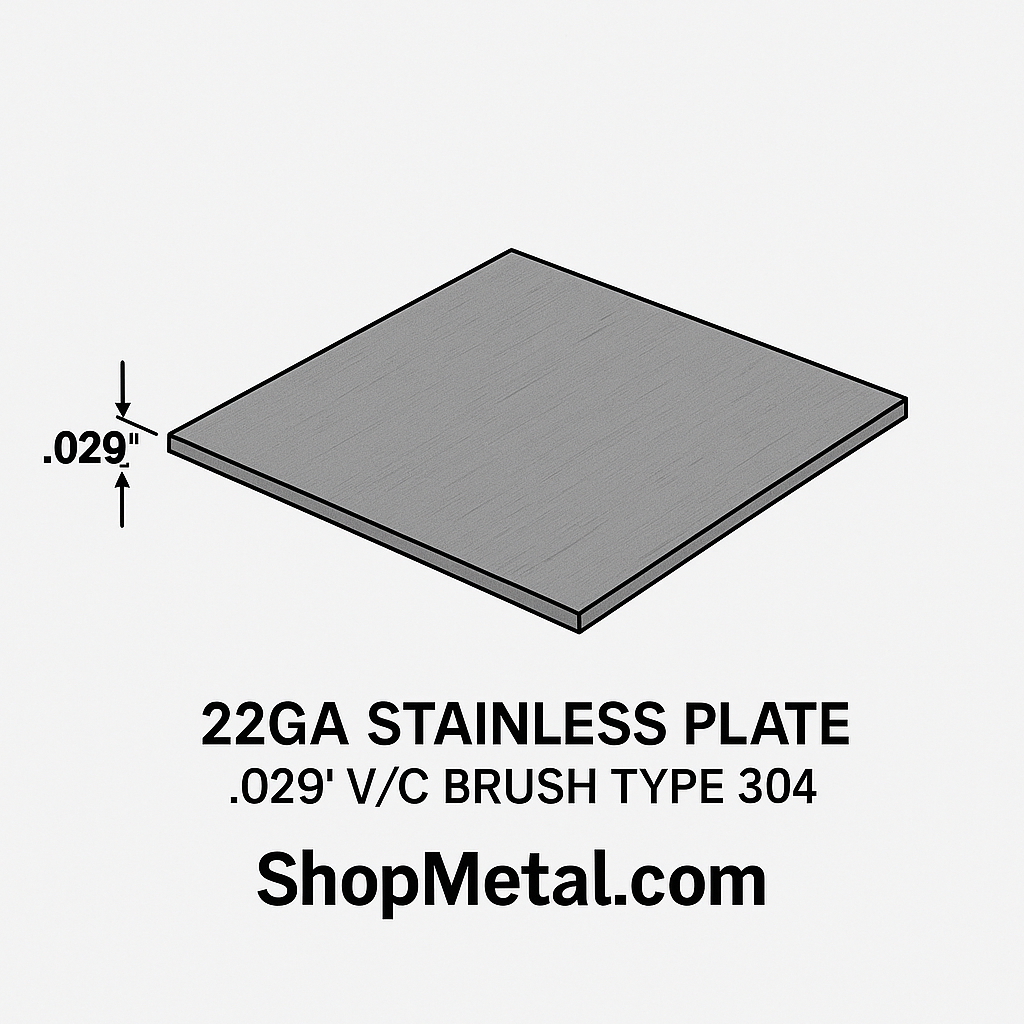

22ga Stainless Plate
.029" V/C BRUSH TYPE 304/ PRE CUT
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

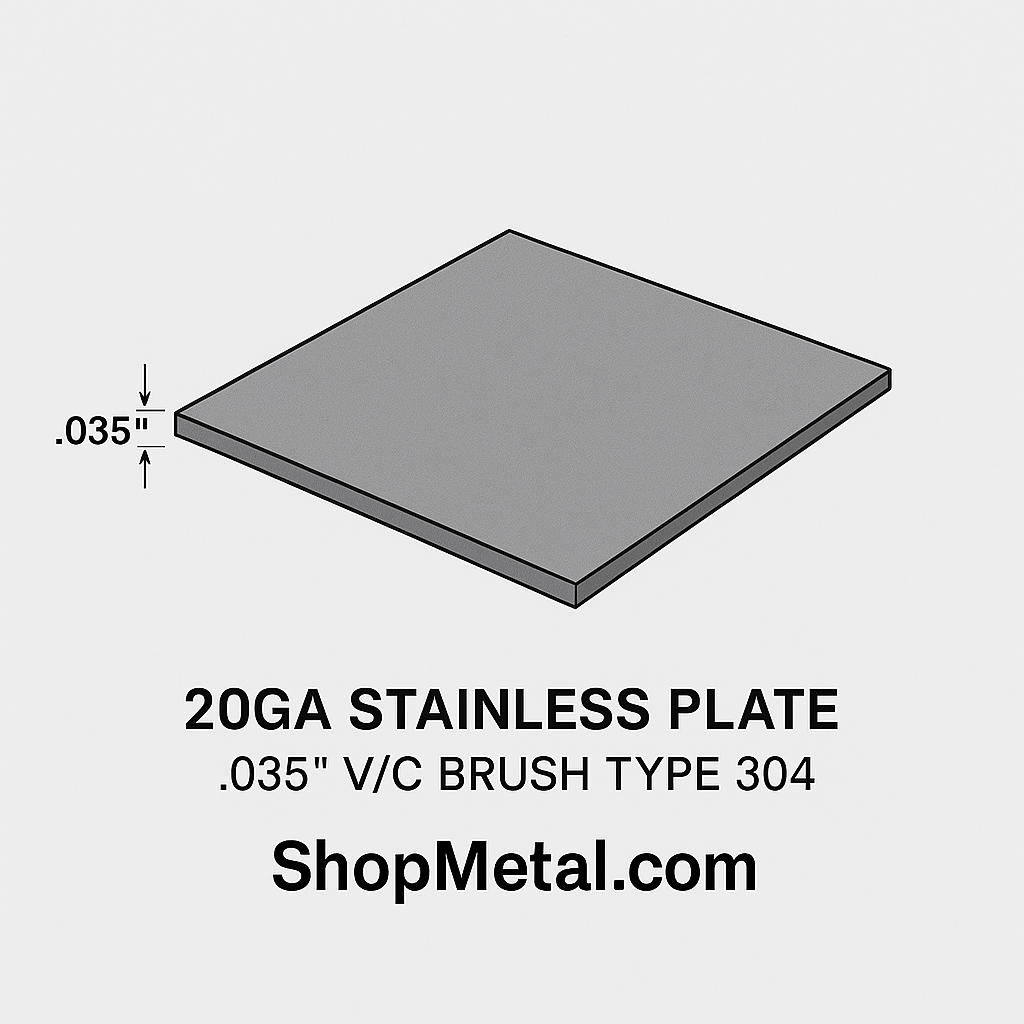

20ga Stainless Plate
.035" GRADE 304 / PRE CUT
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

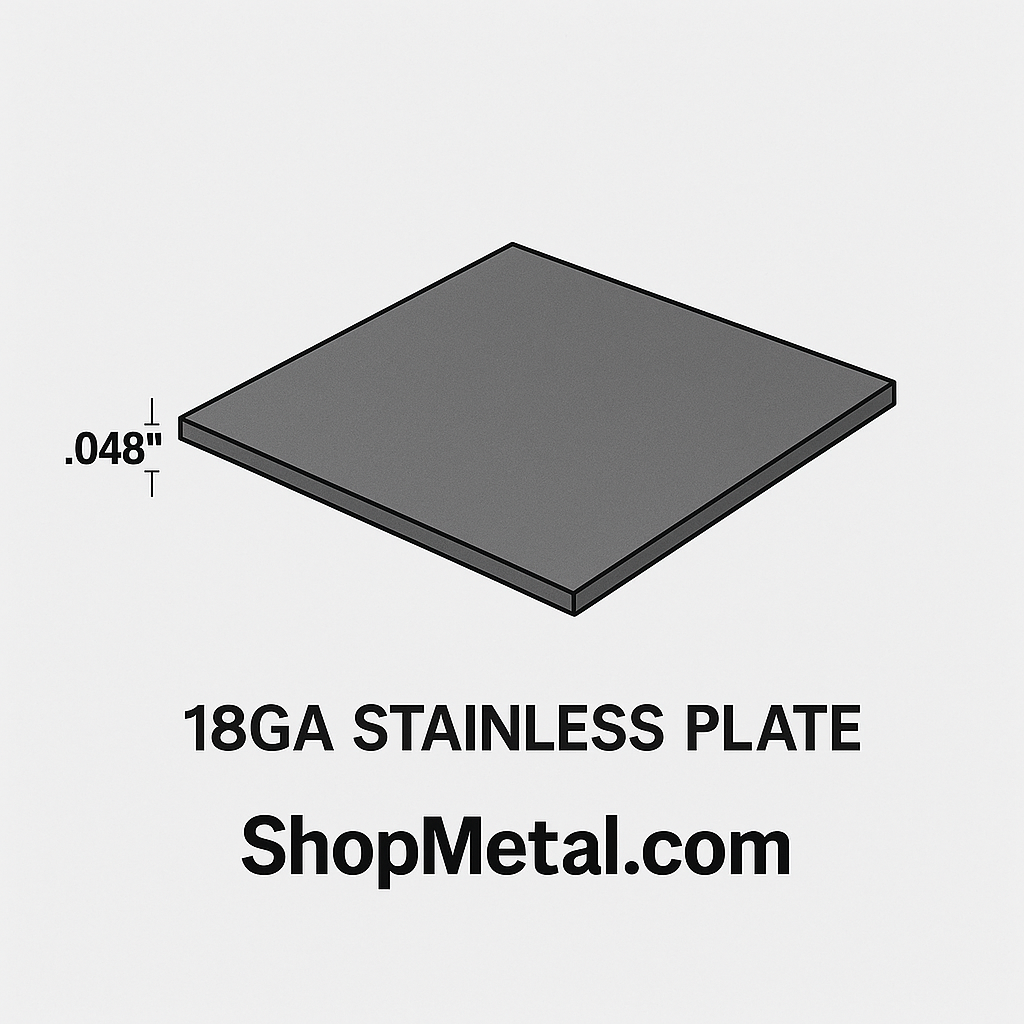

18ga Stainless Plate
.048" BRUSH/2B MIXED TYPE 304/ PRE CUT
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

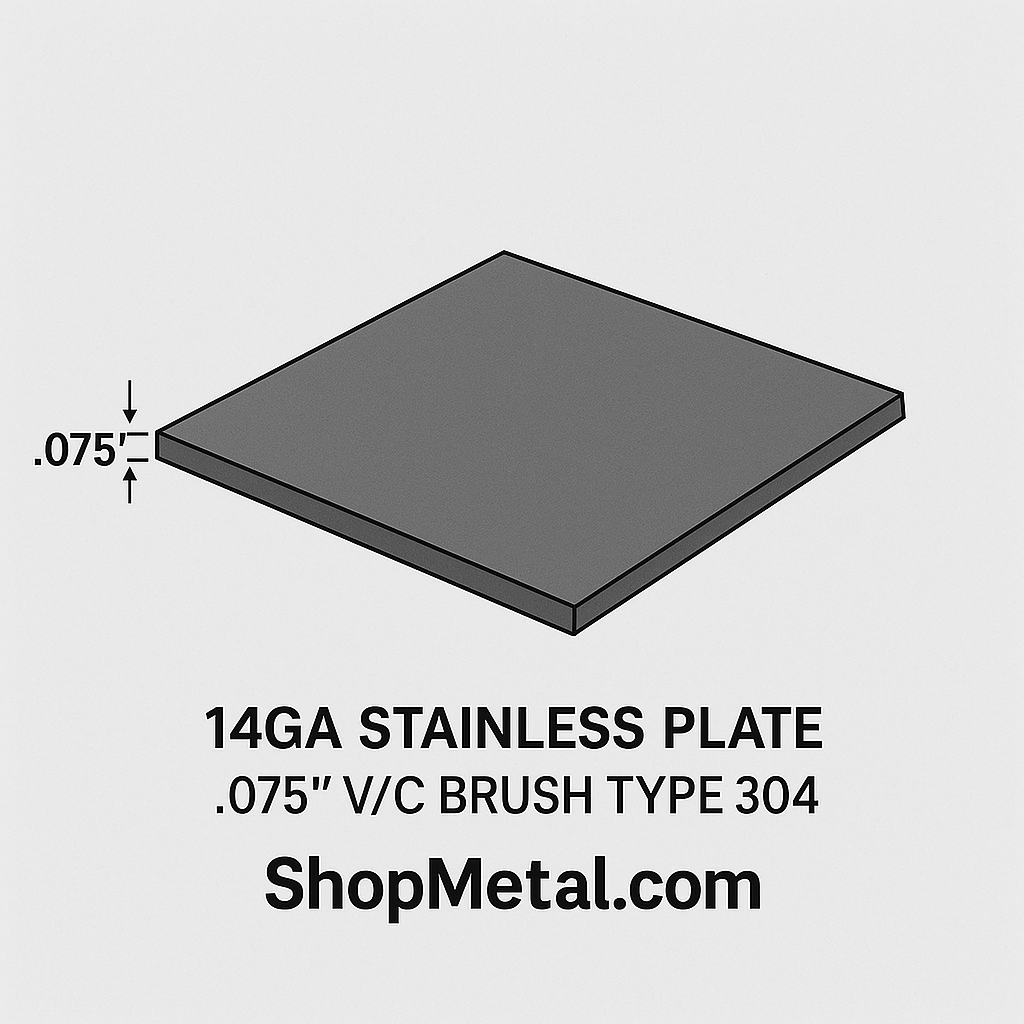

14ga Stainless Plate
.075" BRUSH/2B MIXED TYPE 304/ PRE CUT
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

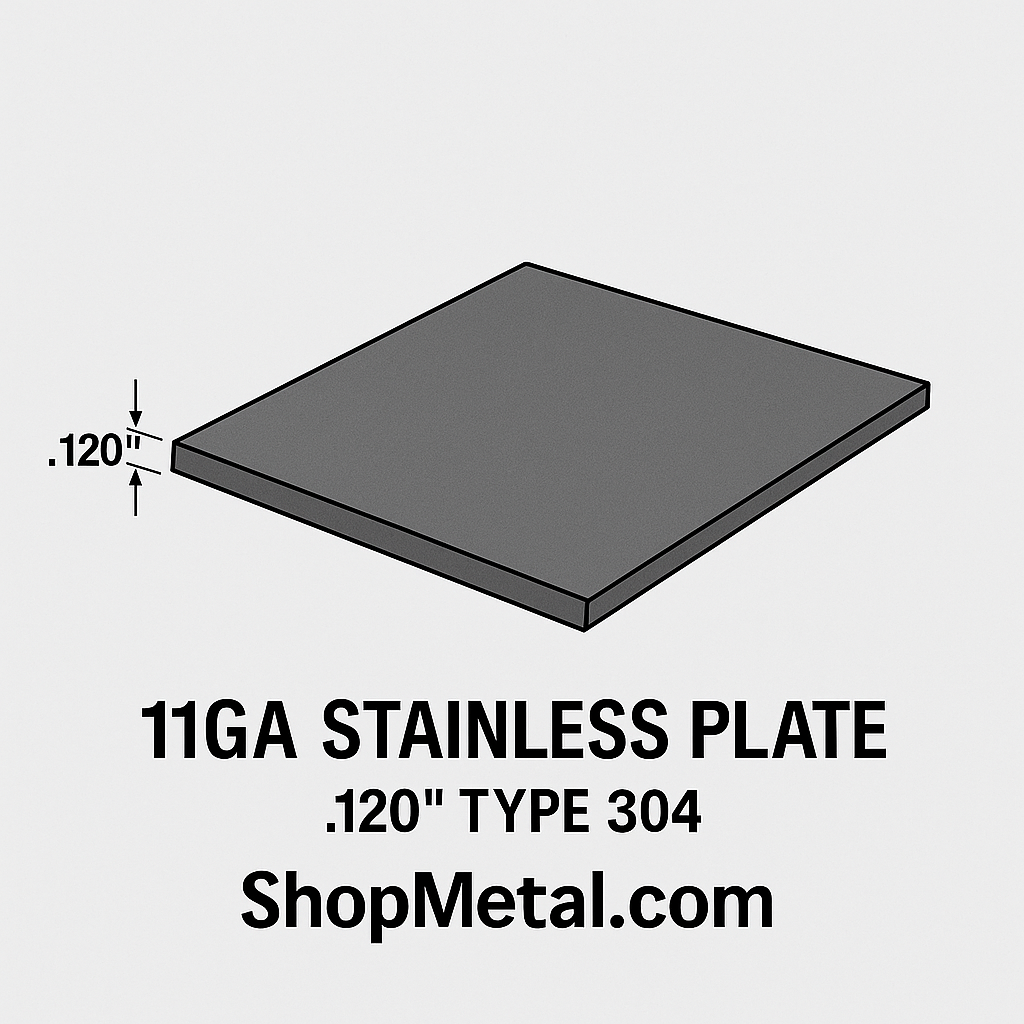

11ga Stainless Plate
.120" TYPE 304
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

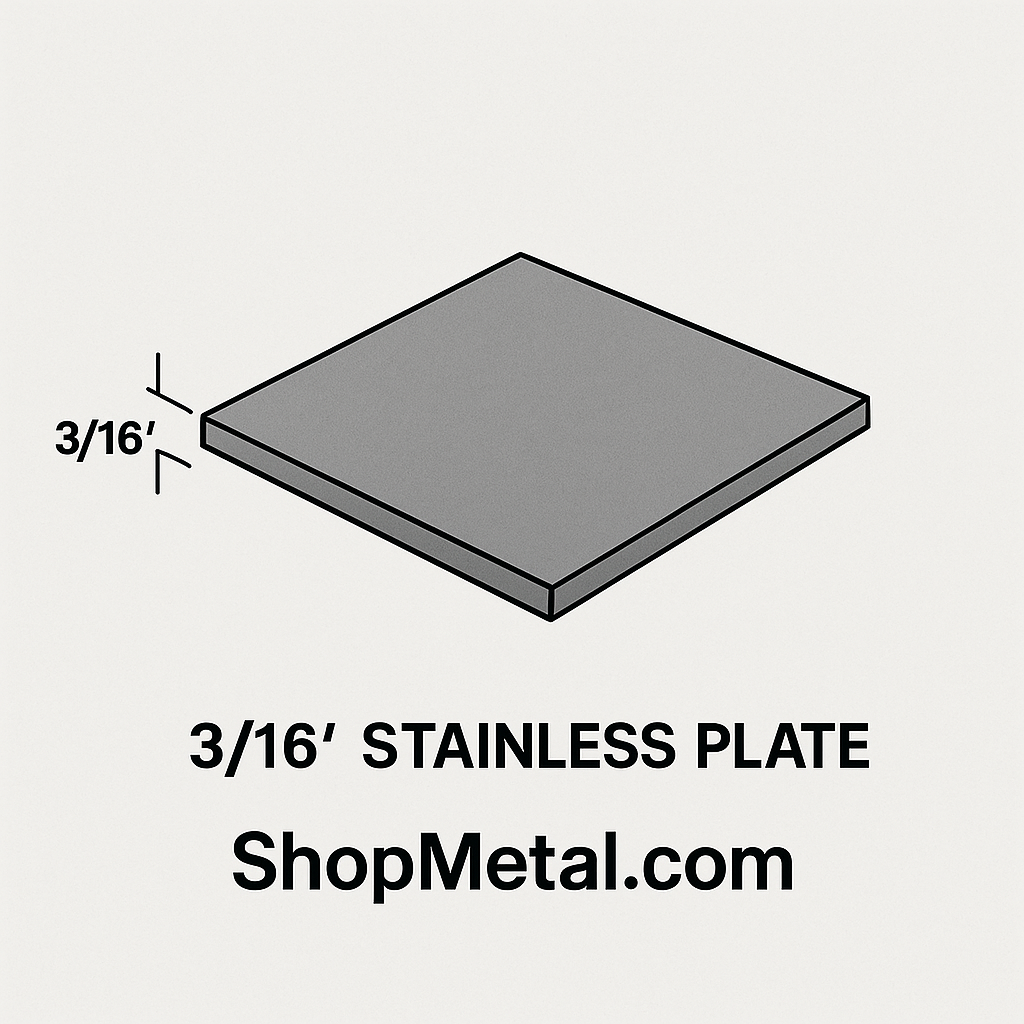

3/16" Stainless Plate
.187" TYPE 304
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

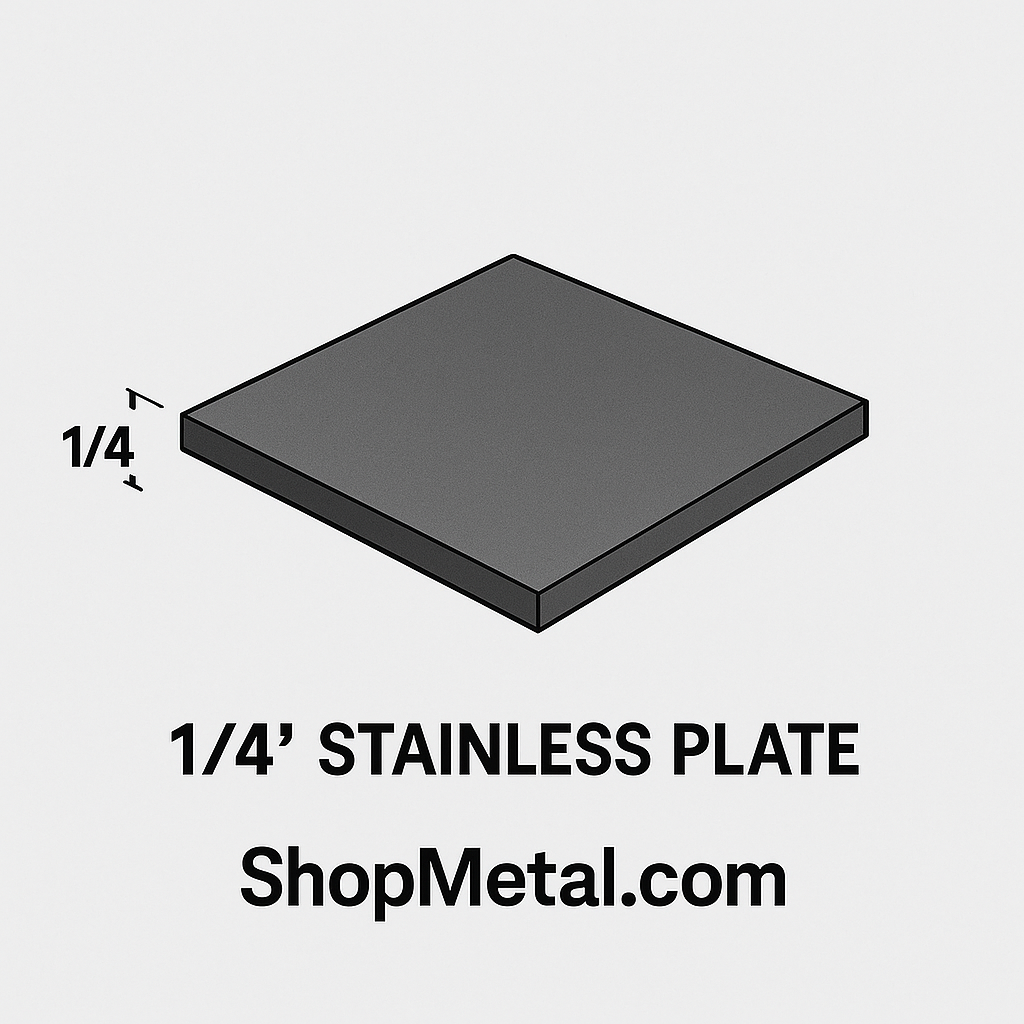

1/4" Stainless Plate
.250" TYPE 304
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
3/8'' Stainless Plate
.375 TYPE 304/ PRE CUT
Width:
Select
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
