Steel "s" Beams (standard)
Steel "S" Beams, or American Standard Beams, are hot-rolled structural beams designed with tapered flanges to optimize load distribution and strength. They are frequently used in heavy-duty structural frameworks.
Standard Steel Beams are engineered for load-bearing applications that require superior strength and rigidity. Their structural design makes them essential in large-scale commercial, residential, and industrial construction.
Steel "S" Beams are widely used in the construction of bridges, platforms, and building frameworks due to their high strength and support capabilities. Their shape provides efficient weight distribution over long spans.
Steel "S" Beams, or American Standard Beams, are hot-rolled structural beams designed with tapered flanges to optimize load distribution and strength. They are frequently used in heavy-duty structural frameworks.
Standard Steel Beams are engineered for load-bearing applications that require superior strength and rigidity. Their structural design makes them essential in large-scale commercial, residential, and industrial construction.
Steel "S" Beams are widely used in the construction of bridges, platforms, and building frameworks due to their high strength and support capabilities. Their shape provides efficient weight distribution over long spans.
Specifications
Available Stock Sizes
Standard lengths of 20ft, 40ft, or custom cut to size.
Measurement Guide
Flange Width (A) x Web Thickness (B) x Beam Depth (C) x Length.
PageTitle
Steel S Beams, Hot Rolled American Standard Structural Beam for Heavy Duty Frameworks
Specifications
ASTM A36 / ASTM A992.
Surface Finish
Blue / Gray, slightly grainy, mill finish.
Workability
Can be welded, cut, machined, and fabricated using standard techniques.
Provides excellent strength-to-weight ratio with high structural integrity.
Provides excellent strength-to-weight ratio with high structural integrity.
Additional Notes
Tapered flanges provide increased strength while maintaining a lightweight profile.
Hot-dipped galvanized versions available for corrosion resistance.
Hot-dipped galvanized versions available for corrosion resistance.
Applications
Used in building frameworks, bridge construction, structural supports, mezzanines, and industrial platforms.
Ideal for beams and supports in commercial, residential, and industrial construction.
Ideal for beams and supports in commercial, residential, and industrial construction.
Chemical Composition
Carbon (C): 0.26% max.
Copper (Cu): 0.2%.
Iron (Fe): 99%.
Manganese (Mn): 0.75%.
Phosphorus (P): 0.04% max.
Sulfur (S): 0.05% max.
Copper (Cu): 0.2%.
Iron (Fe): 99%.
Manganese (Mn): 0.75%.
Phosphorus (P): 0.04% max.
Sulfur (S): 0.05% max.
Mechanical Properties
Yield Strength: 36,000 - 50,000 psi (depending on grade).
Ultimate Tensile Strength: 58,000 - 65,000 psi.
Elongation: 20% in 2".
Brinell Hardness: 140.
Density: 0.282 lb/in³ (7.8 g/cc).
Shear Strength: 43,500 psi.
Melting Point: 2,590 - 2,670°F (1,420 - 1,460°C).
Ultimate Tensile Strength: 58,000 - 65,000 psi.
Elongation: 20% in 2".
Brinell Hardness: 140.
Density: 0.282 lb/in³ (7.8 g/cc).
Shear Strength: 43,500 psi.
Melting Point: 2,590 - 2,670°F (1,420 - 1,460°C).
Filter by
Clear Filters
Displaying 1 - 7 of 7 results

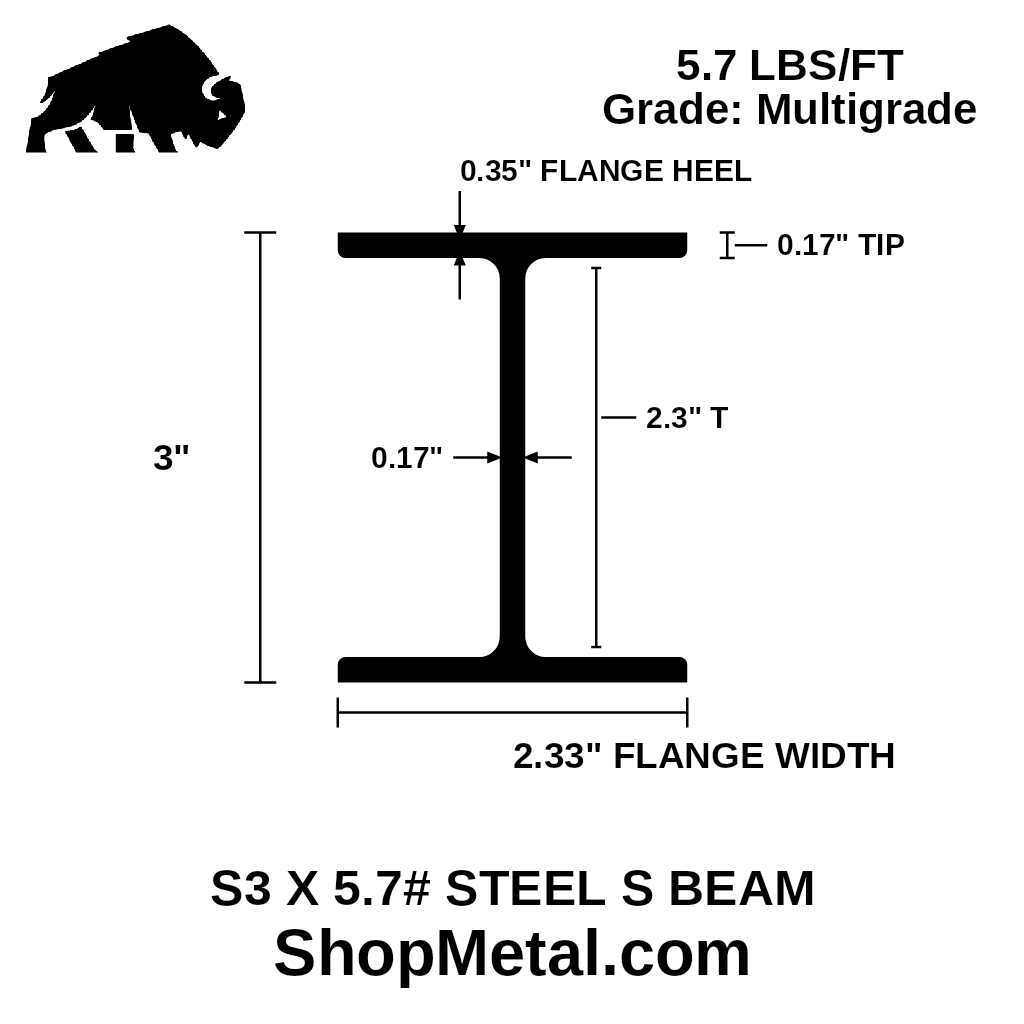

S3 X 5.7# Steel S Beam
3 tall X 2.33 wide X .260 flange X .170 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
S4 X 7.7# Steel S Beam
4 tall X 2.633 wide X .293 flange X .193 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
S4 X 9.5# Steel S Beam
PRECUT 2.796 wide X.293 flange X .326 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
S5 X 10# Steel S Beam
5 tall X 3.004 wide X .326 flange X .214 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
S6 X 12.5# Steel S Beam
6 tall X 3.332 wide X .359 flange X .232 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
S6 X 17.25# Steel S Beam
6 tall X 3.565 wide X .359 flange X .465 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
