Wide Flange Beams
Wide Flange Beams, also known as H Beams or W Beams, are hot-rolled structural steel components designed with non-tapered flanges. This shape provides uniform load distribution and superior strength for vertical and horizontal support applications.
These heavy-duty beams offer excellent horizontal stability and are commonly used in high-rise buildings, bridges, platforms, trailers, and other load-bearing structures. Their wide flanges improve bending resistance and structural integrity under heavy stress.
Wide Flange Beams, also known as H Beams or W Beams, are hot-rolled structural steel components designed with non-tapered flanges. This shape provides uniform load distribution and superior strength for vertical and horizontal support applications.
These heavy-duty beams offer excellent horizontal stability and are commonly used in high-rise buildings, bridges, platforms, trailers, and other load-bearing structures. Their wide flanges improve bending resistance and structural integrity under heavy stress.
Specifications
Available Stock Sizes
Lengths: 20ft, 30ft, 40ft, 50ft, or Custom Cut to Size.
Chemical Composition
Carbon: 0.23%, Manganese: 0.5-1.6%, Silicon: 0.40%, Vanadium: 0.15%, Phosphorus: 0.035%, Sulfur: 0.045%, Iron: Balance.
Measurement Guide
Depth (A) x Flange Width (B) x Web Thickness (C) x Length.
PageTitle
Wide Flange Beams, Hot Rolled H Beams for Structural Support in Buildings and Bridges
Specifications
ASTM A992, ASTM A572-50, ASTM A529-50.
Surface Finish
Mill Finish, Slightly Grainy, Blue-Gray.
Workability
Easy to Weld, Cut, Form, and Machine.
Additional Notes
Stock lengths may vary +/- 1/2". Custom cut tolerances available.
ASTM A992 provides improved weldability, strength, and resistance compared to older ASTM A36 standards.
ASTM A992 provides improved weldability, strength, and resistance compared to older ASTM A36 standards.
Applications
Used in structural frameworks, bridges, house beams, trailers, platforms, and heavy load-bearing columns.
Also found in machine bases, hoists, cranes, and trolley beams for garages.
Also found in machine bases, hoists, cranes, and trolley beams for garages.
Mechanical Properties
Ultimate Tensile Strength: 65,000 psi (448 MPa).
Yield Tensile Strength: 50,000 psi (345 MPa).
Elongation: 21% in 2", Brinell Hardness: 143.
Yield Tensile Strength: 50,000 psi (345 MPa).
Elongation: 21% in 2", Brinell Hardness: 143.
Filter by
Clear Filters
Displaying 1 - 48 of 48 results

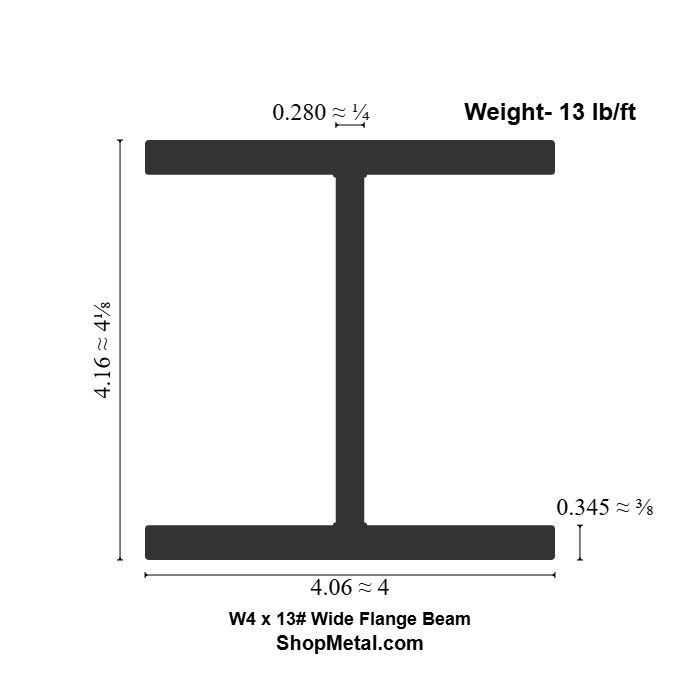

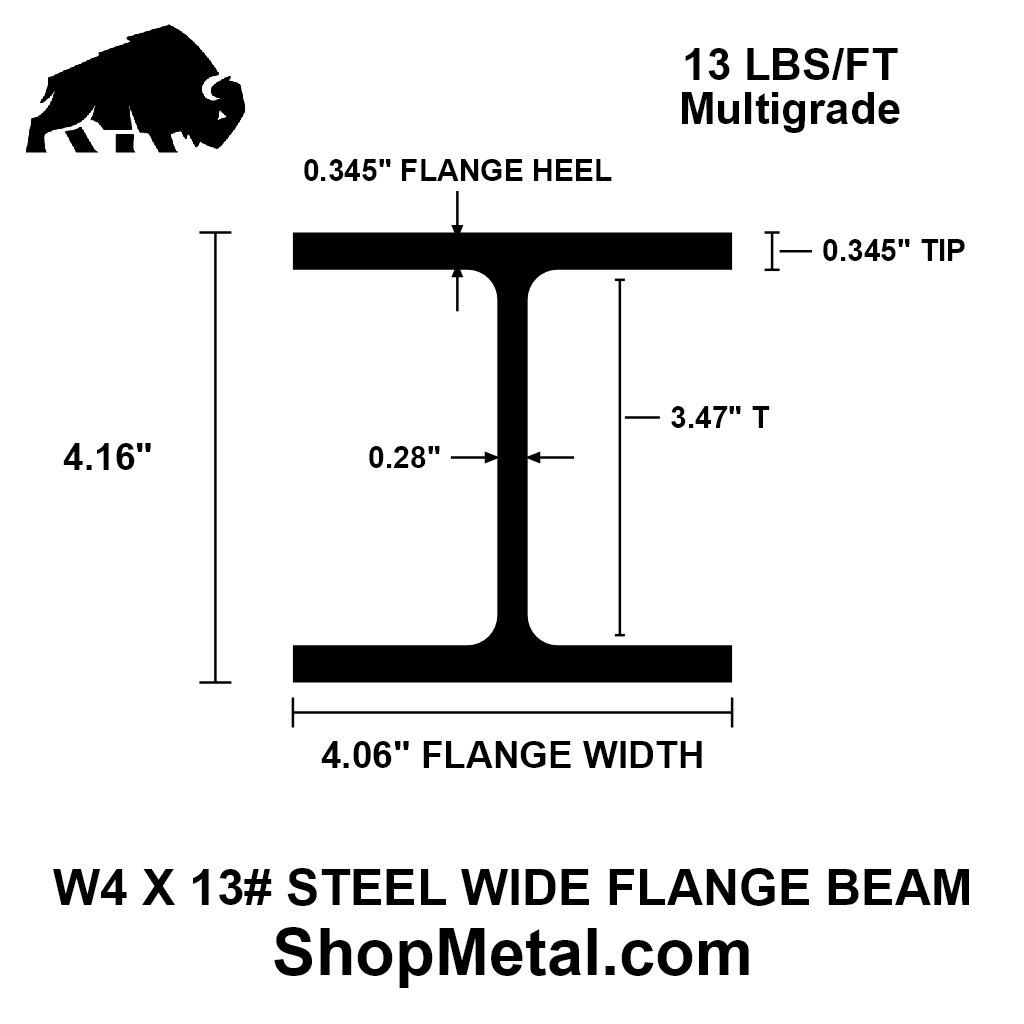

W4 X 13# Steel Wide Flange Beam
4.16 tall X 4.06 wide X .345 flange X .280 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W5 X 16# Steel Wide Flange Beam
5.01 tall X 5.00 wide X .36 flange X .24 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

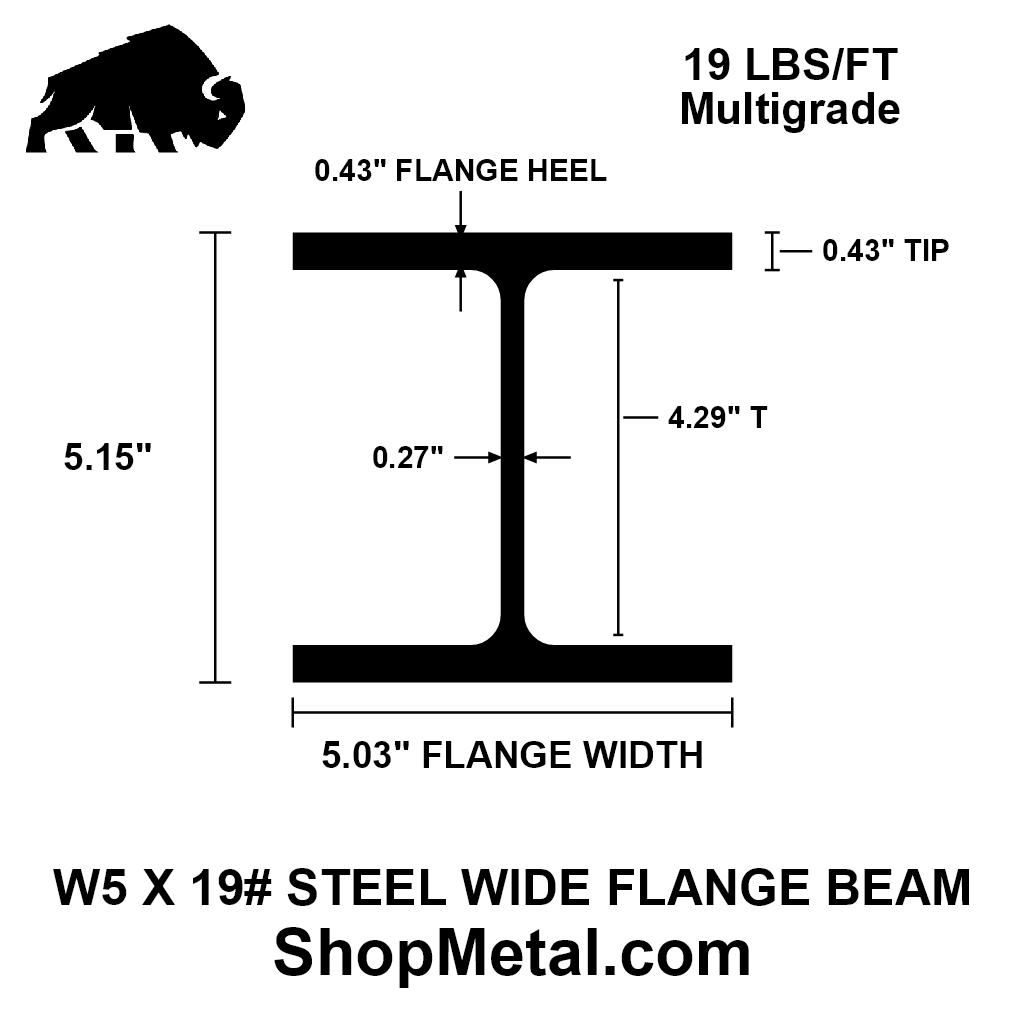

W5 X 19# Steel Wide Flange Beam
5.15 tall X 5.03 wide X .43 flange X .27 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

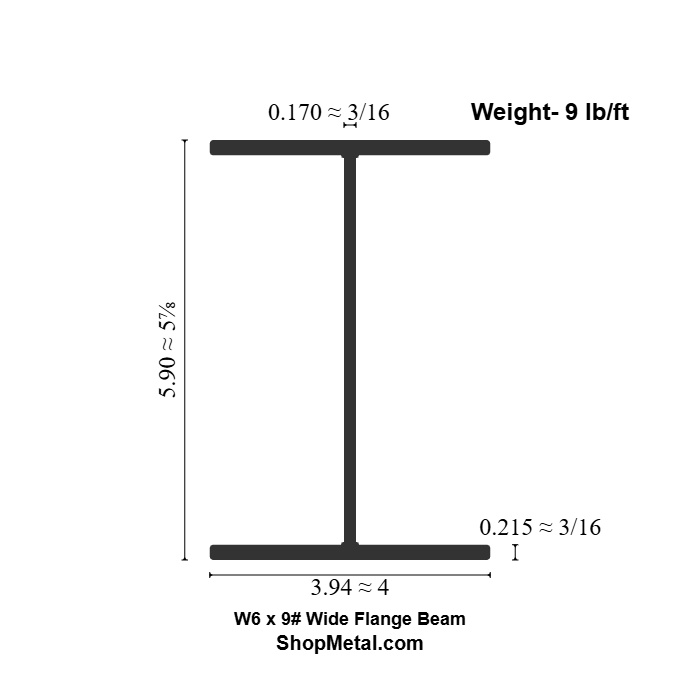

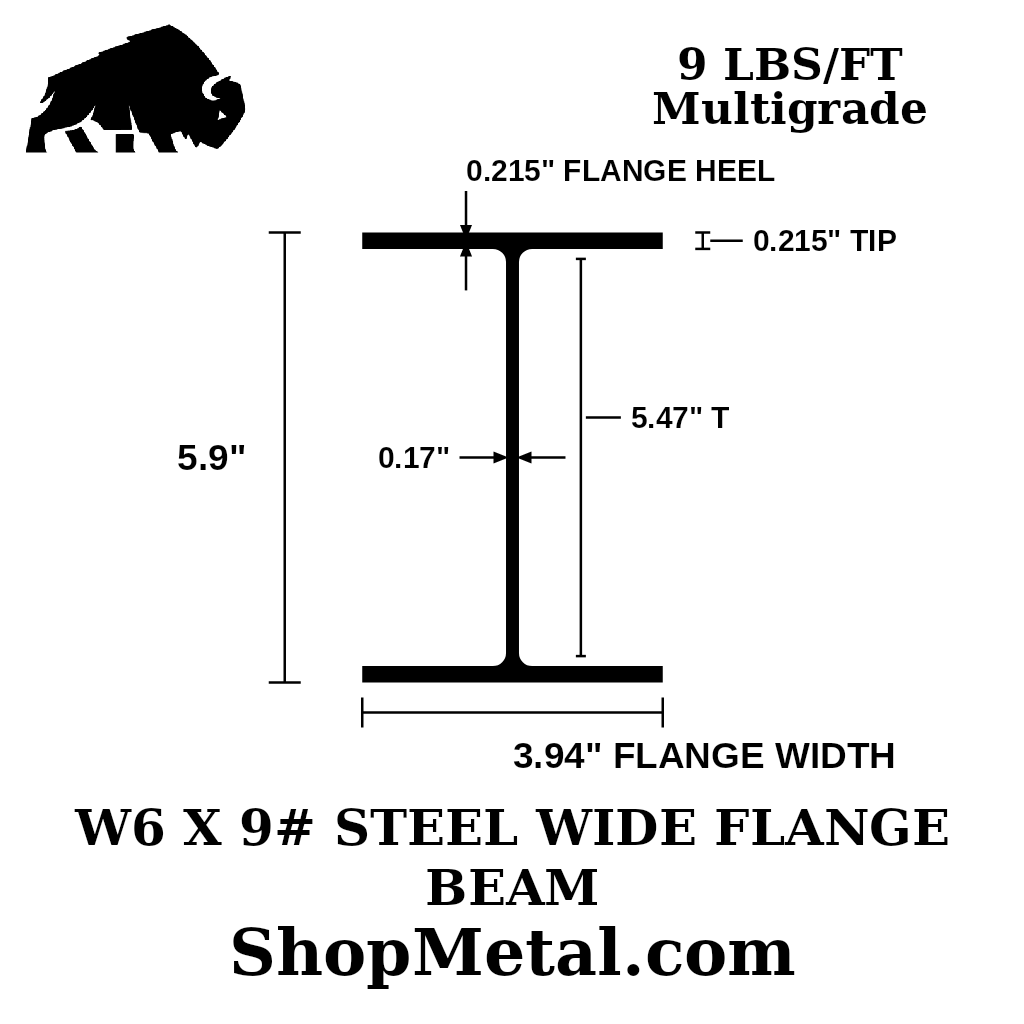

W6 X 9# Steel Wide Flange Beam
5.9 tall X 3.940 wide X .215 flange X .170 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

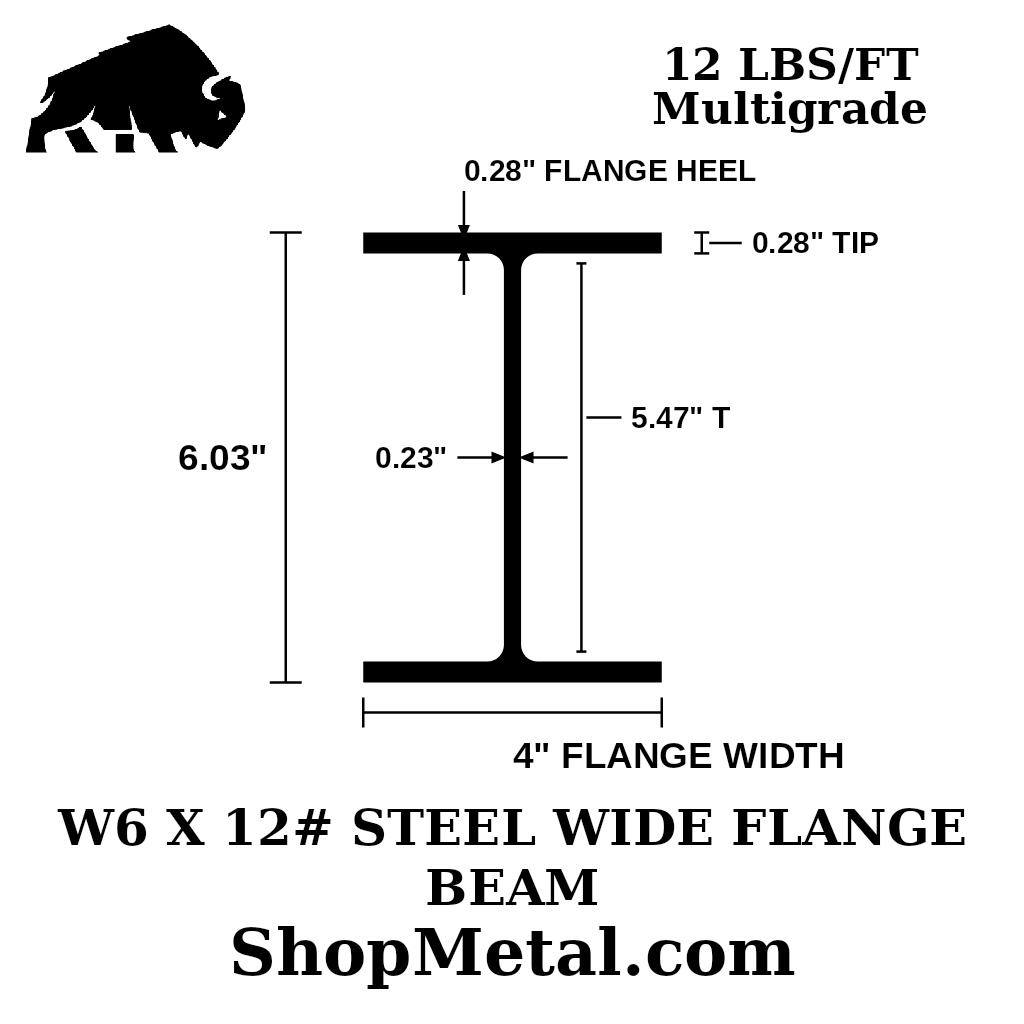

W6 X 12# Steel Wide Flange Beam
6.03 tall X 4.00 wide X .280 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

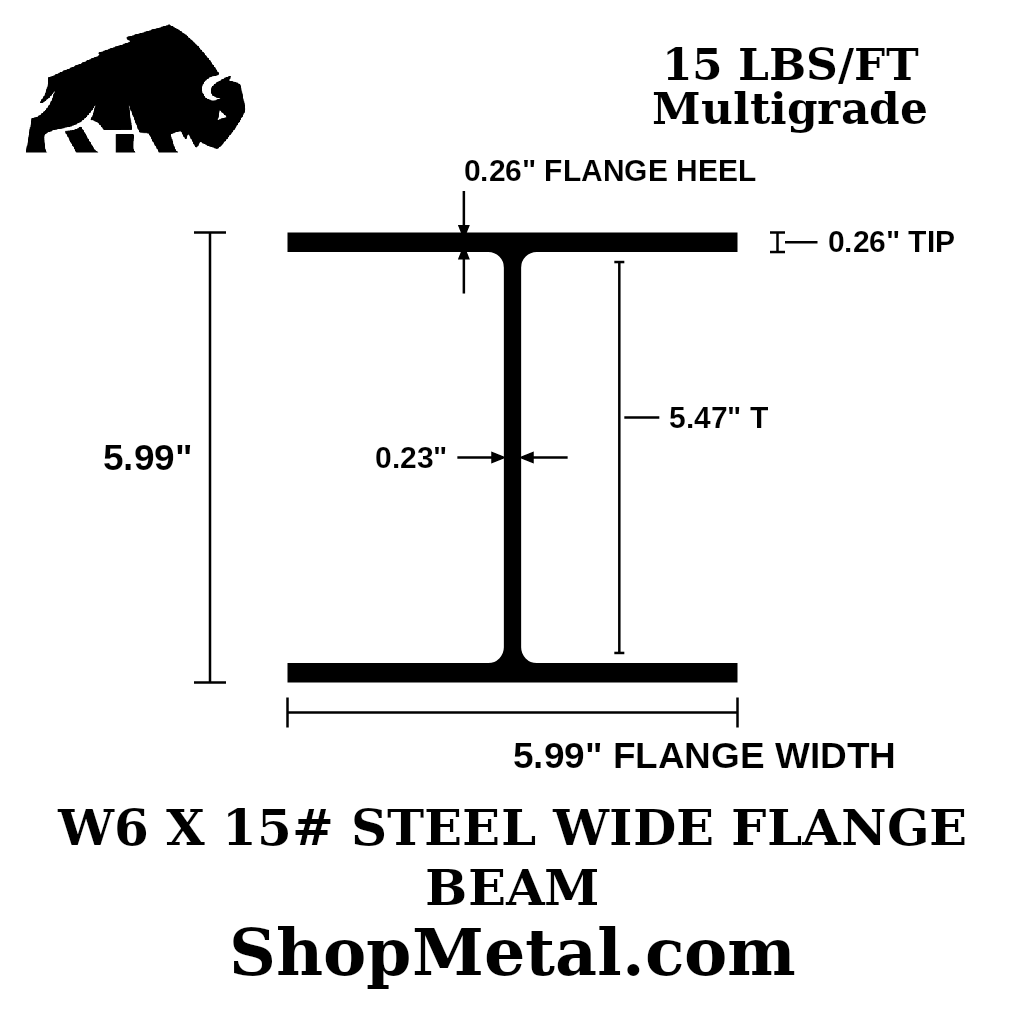

W6 X 15# Steel Wide Flange Beam
5.99 tall X 5.99 wide X .260 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

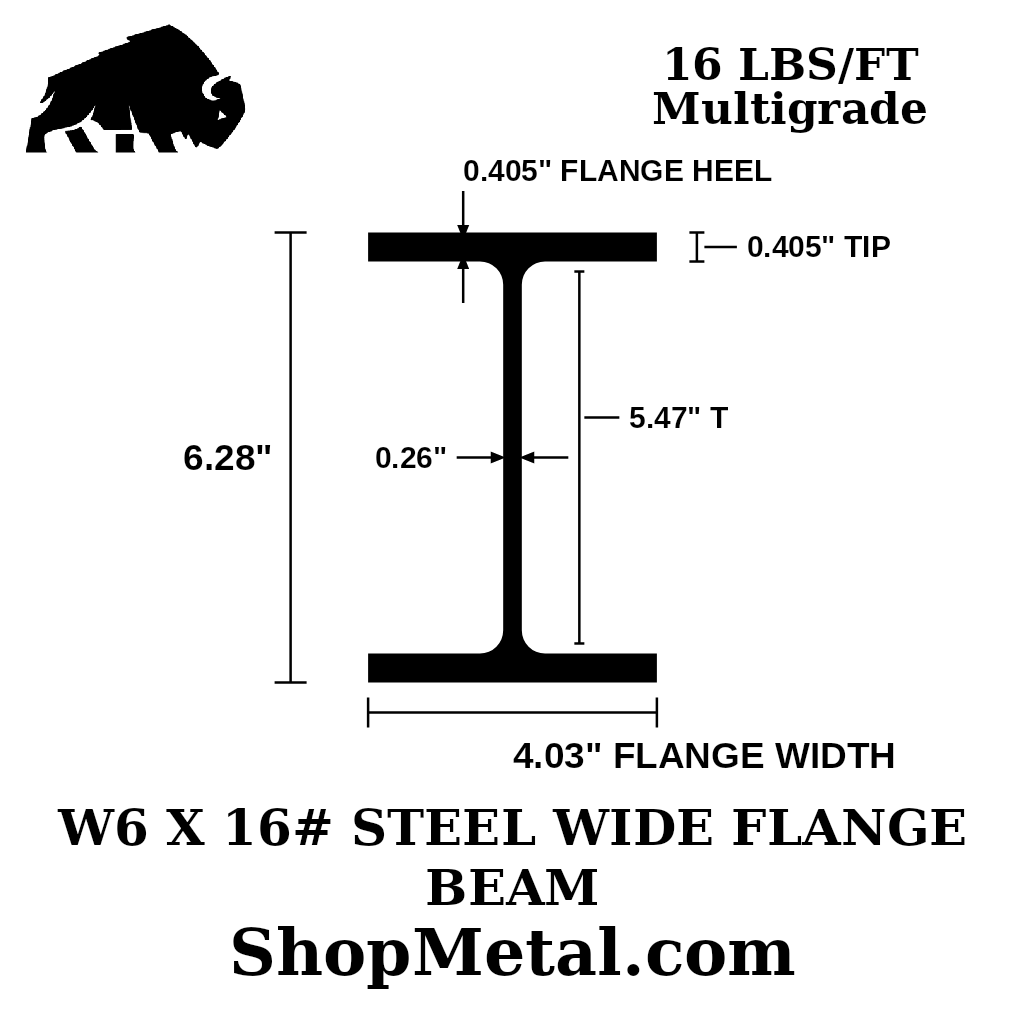

W6 X 16# Steel Wide Flange Beam
6.28 tall X 4.03 wide X .405 flange X .260 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W6 X 20# Steel Wide Flange Beam
6.20 tall X 6.02 wide X .365 flange X .260 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W6 X 25# Steel Wide Flange Beam
6.38 tall X 6.08 wide X .455 flange X .320 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

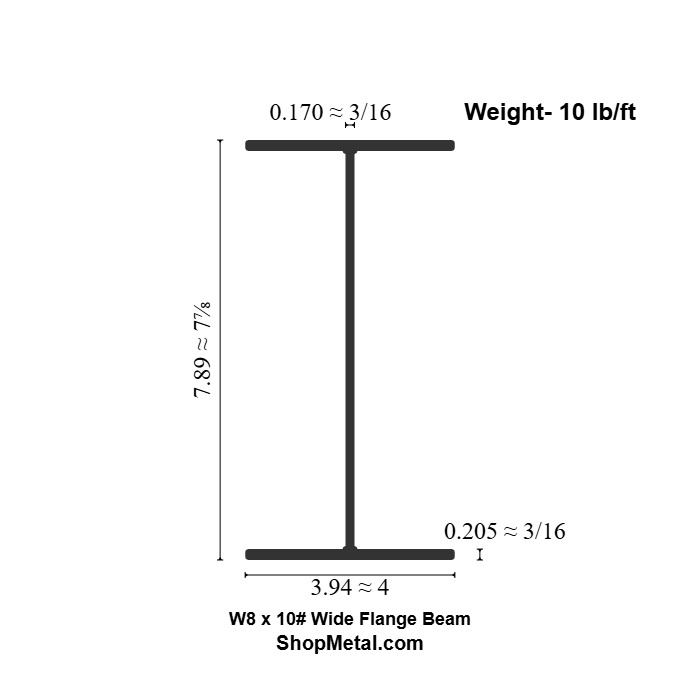

W8 X 10# Steel Wide Flange Beam
7.89 tall X 3.94 wide X .205 flange X .170 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

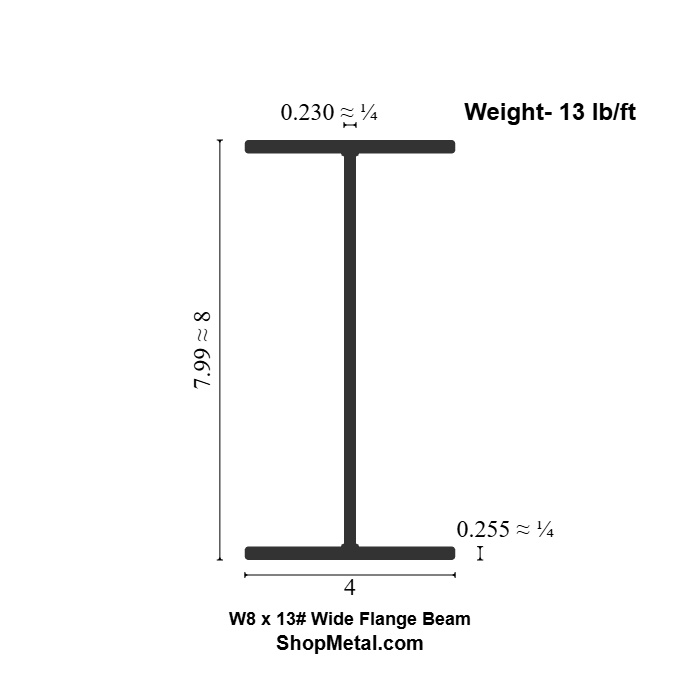

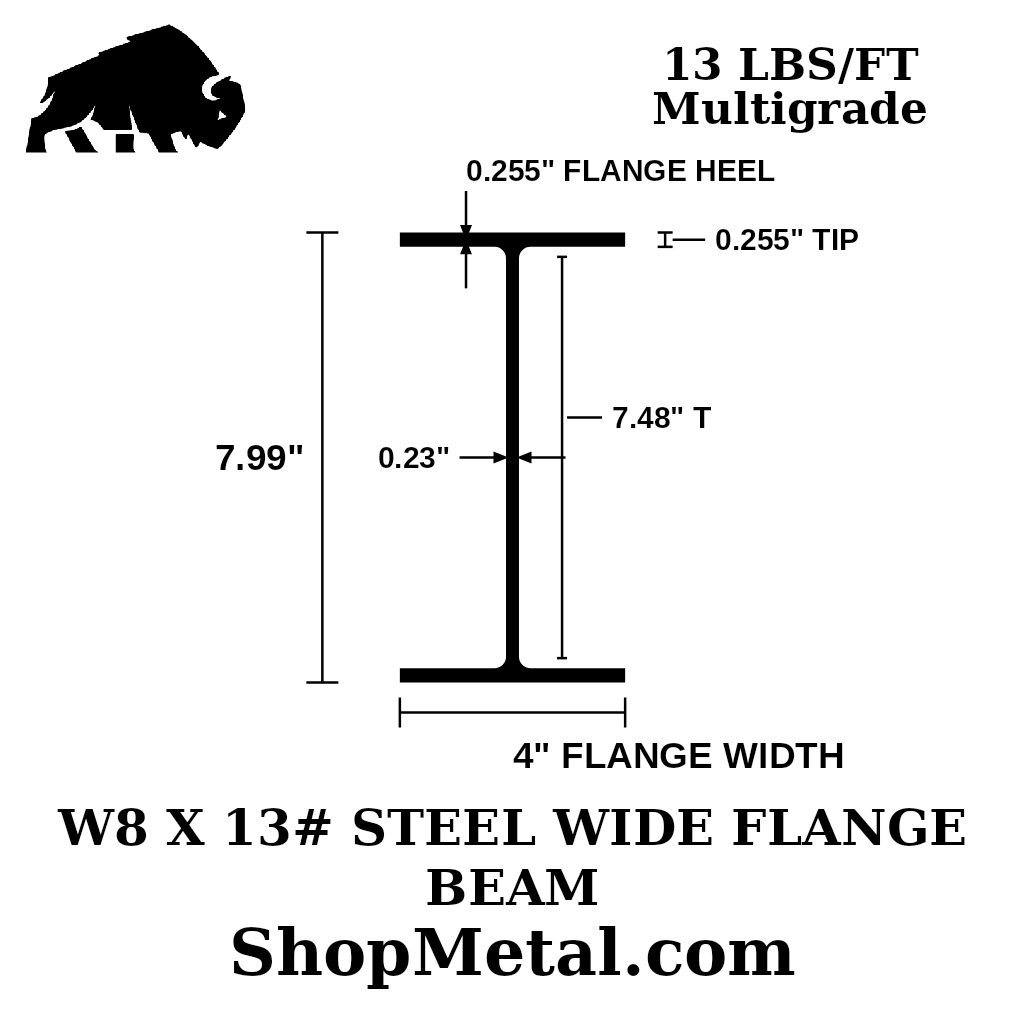

W8 X 13# Steel Wide Flange Beam
7.99 tall X 4.00 wide X .255 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W8 X 15# Steel Wide Flange Beam
8.11 tall X 4.015 wide X .315 flange X .245 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W8 X 18# Steel Wide Flange Beam
8.14 tall X 5.25 wide X .330 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

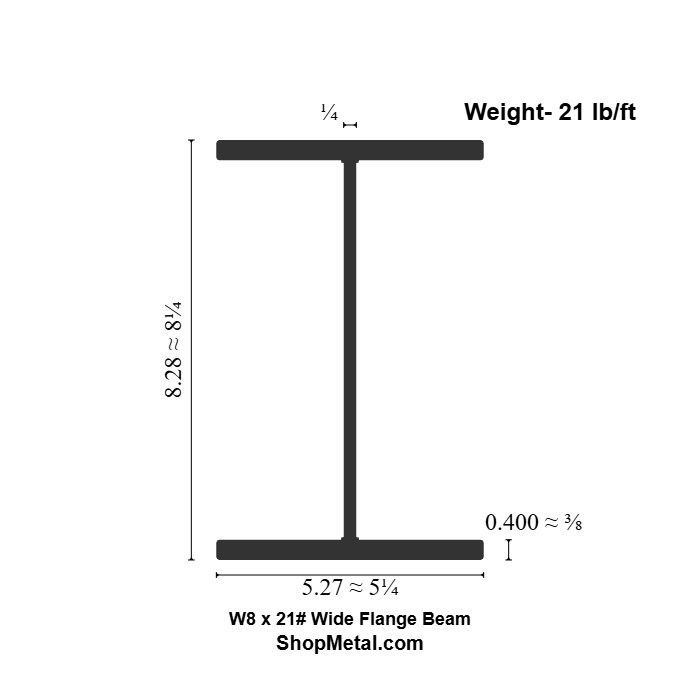

W8 X 21# Steel Wide Flange Beam
8.28 tall X 5.27 wide X .400 flange X .250 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W8 X 24# Steel Wide Flange Beam
7.93 tall X 6.495 wide X .400 flange X .245 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W8 X 28# Steel Wide Flange Beam
8.06 tall X 6.535 wide X .465 flange X .285 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

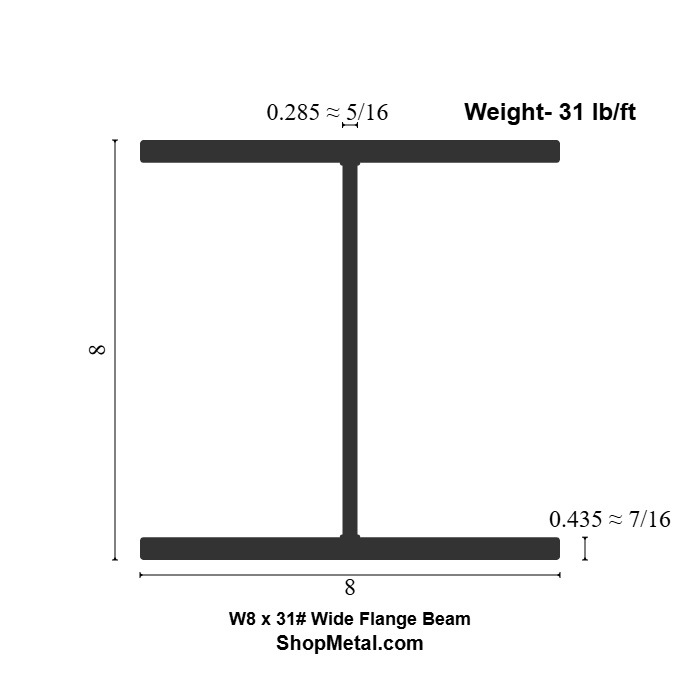

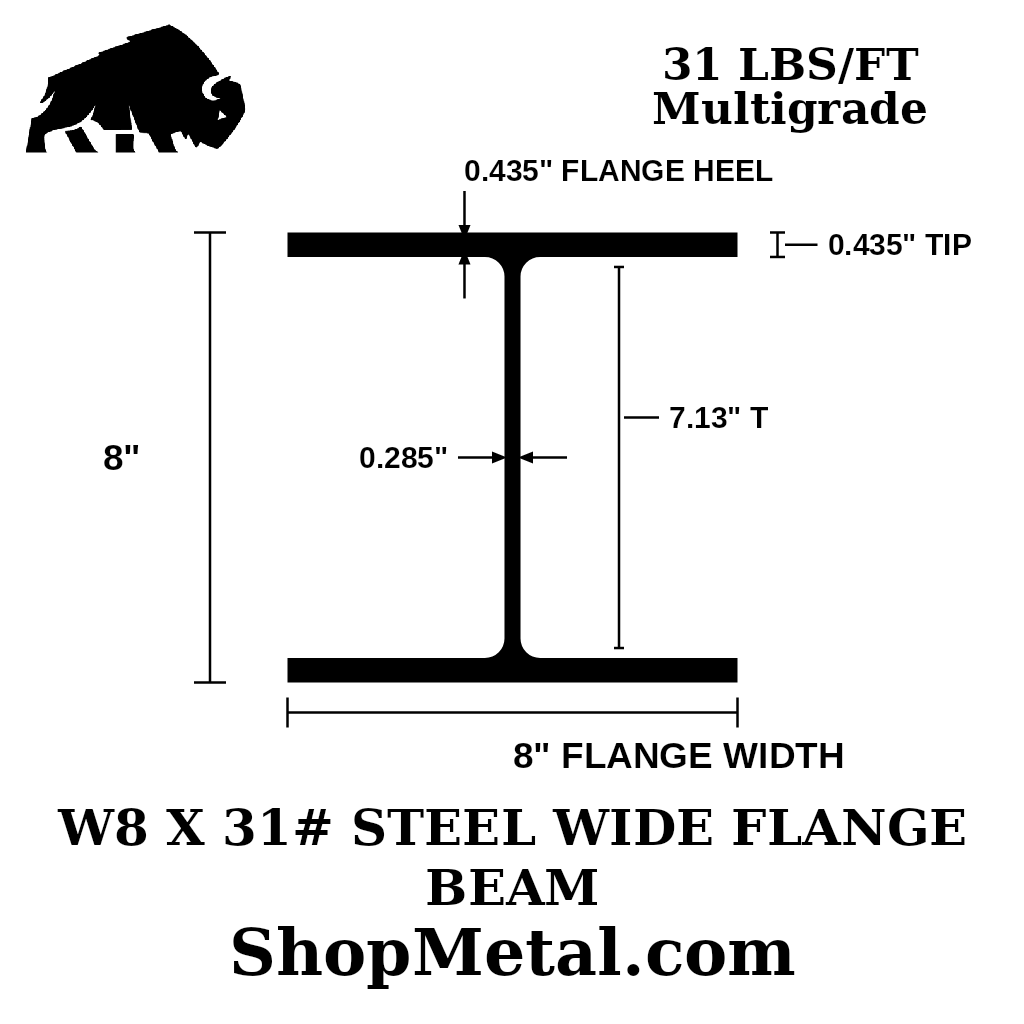

W8 X 31# Steel Wide Flange Beam
8.00 tall X 7.995 wide X .435 flange X .285 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

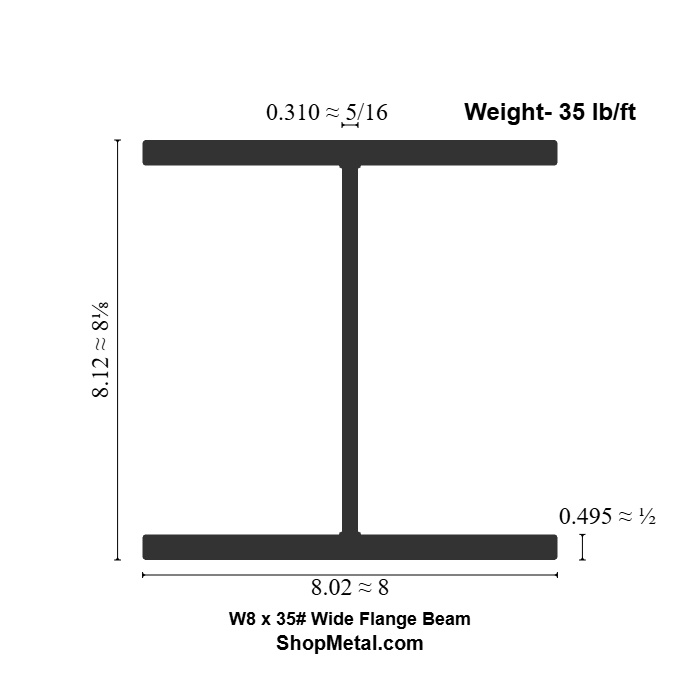

W8 X 35# Steel Wide Flange Beam
8.12 tall X 8.02 wide X .495 flange X .310 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

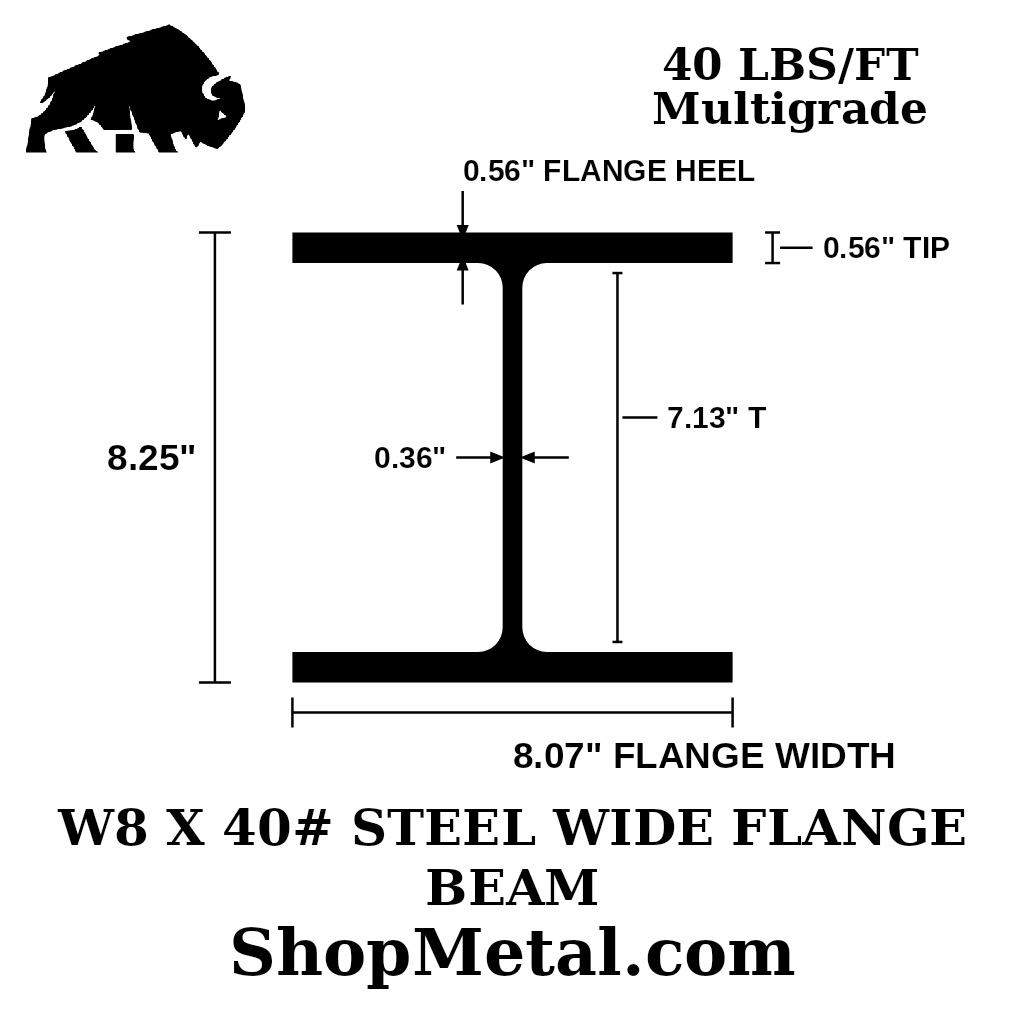

W8 X 40# Steel Wide Flange Beam
8.25 tall X 8.070 wide X .560 flange X .360 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W8 X 48# Steel Wide Flange Beam
8.50 tall X 8.11 wide X .685 flange X .400 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

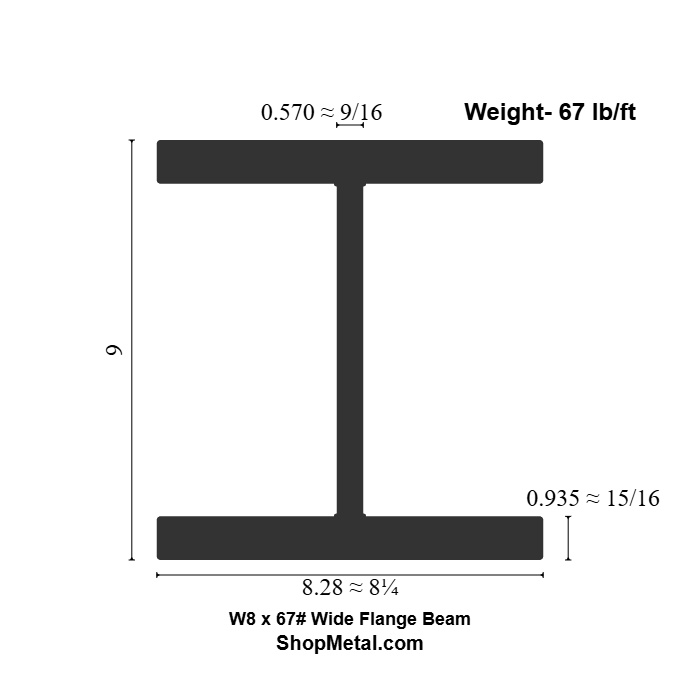

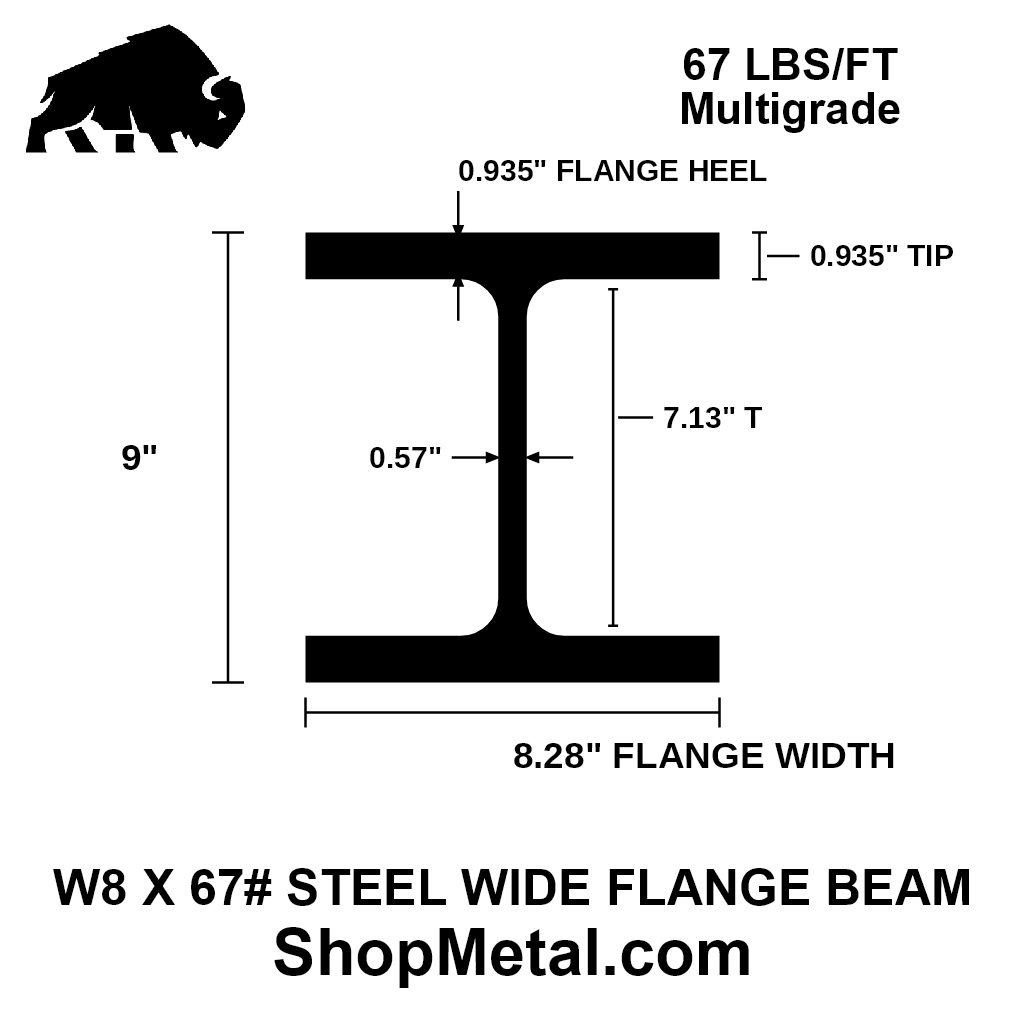

W8 X 67# Steel Wide Flange Beam
9.00 tall X 8.28 wide X .935 flange X .570 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

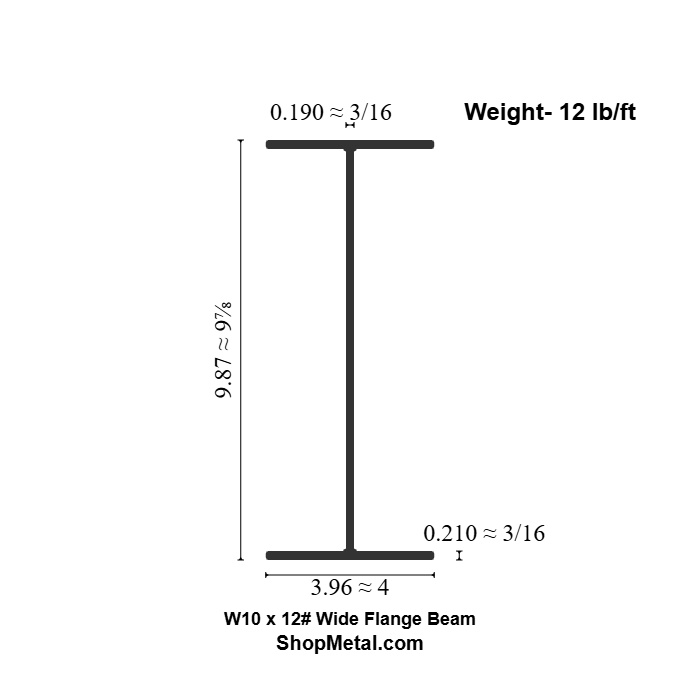

W10 X 12# Steel Wide Flange Beam
9.87 tall X 3.960 wide X .210 flange X .190 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W10 X 15# Steel Wide Flange Beam
9.99 tall X 4 wide X .270 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

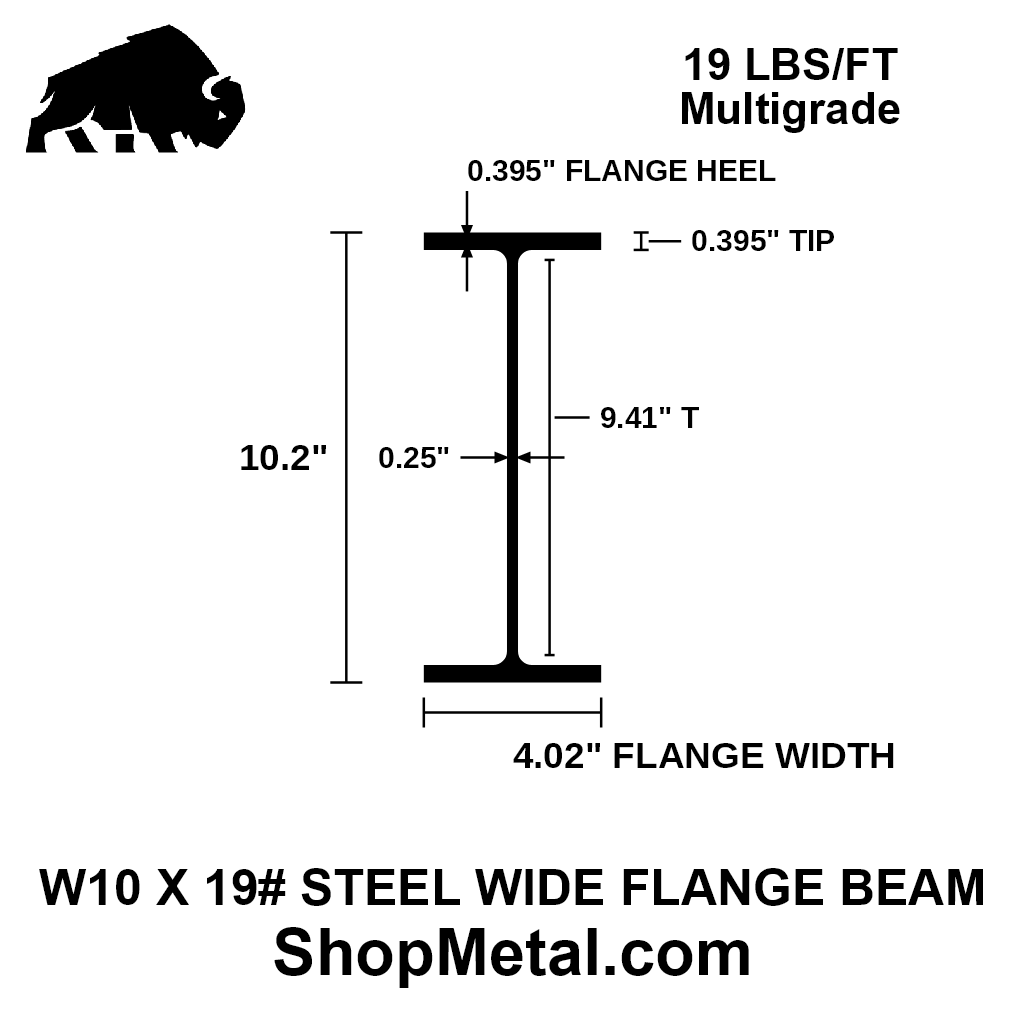

W10 X 19# Steel Wide Flange Beam
10.24 tall X 4.020 wide X .395 flange X .250 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

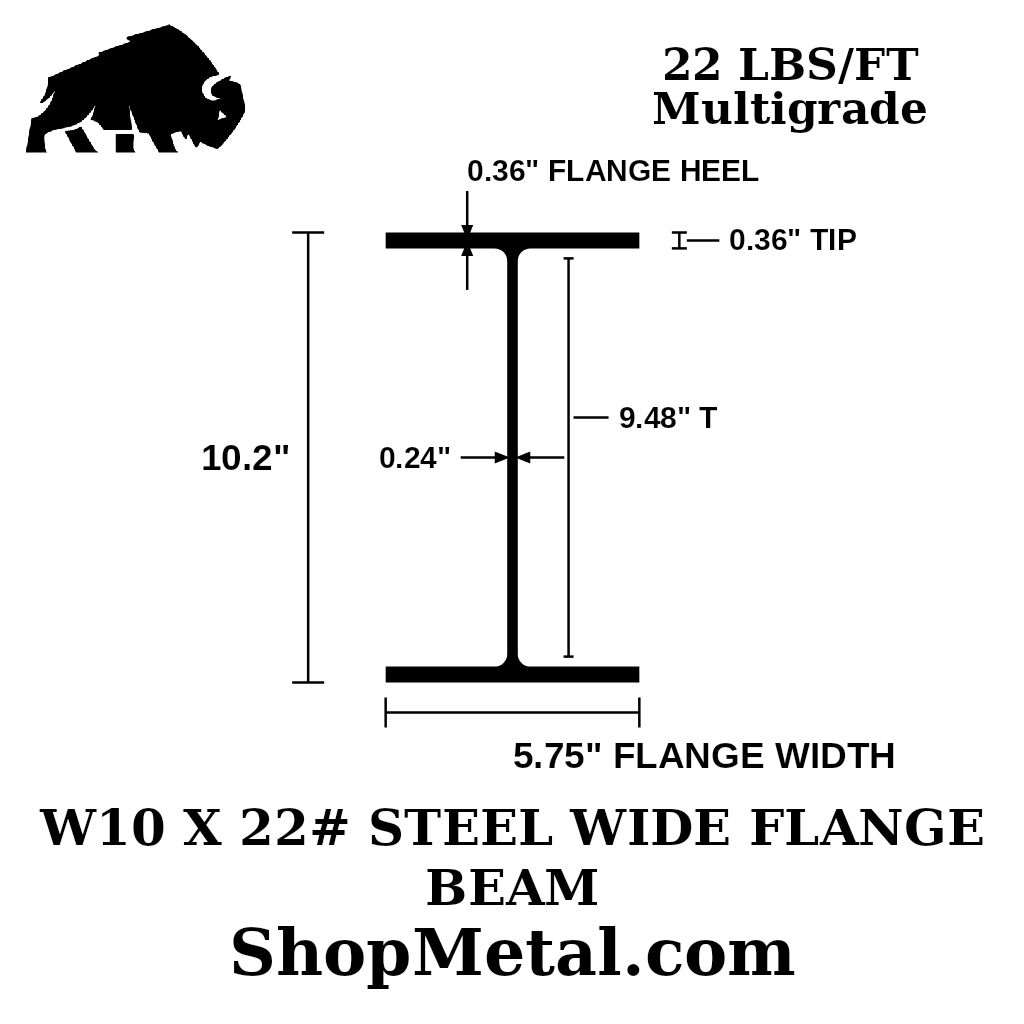

W10 X 22# Steel Wide Flange Beam
10.17 tall X 5.75 wide X .360 flange X .240 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

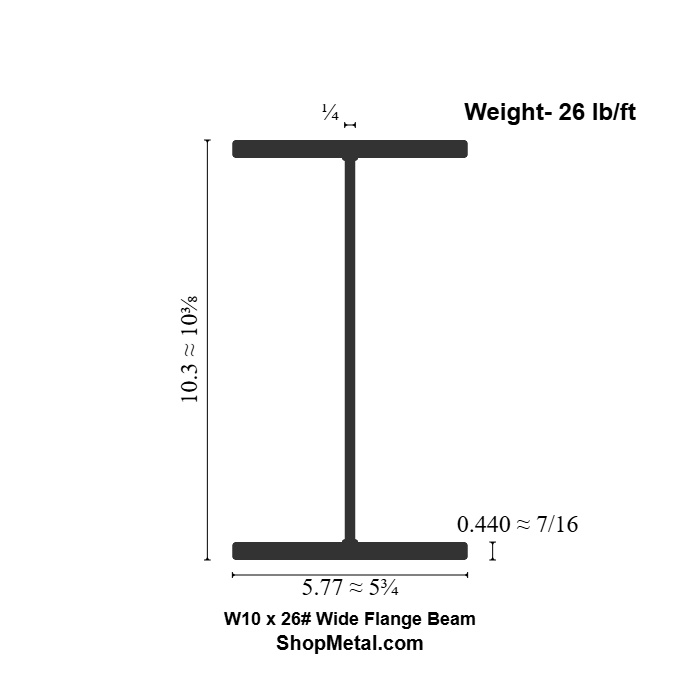

W10 X 26# Steel Wide Flange Beam
10.33 tall X 5.77 wide X .440 flange X .260 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

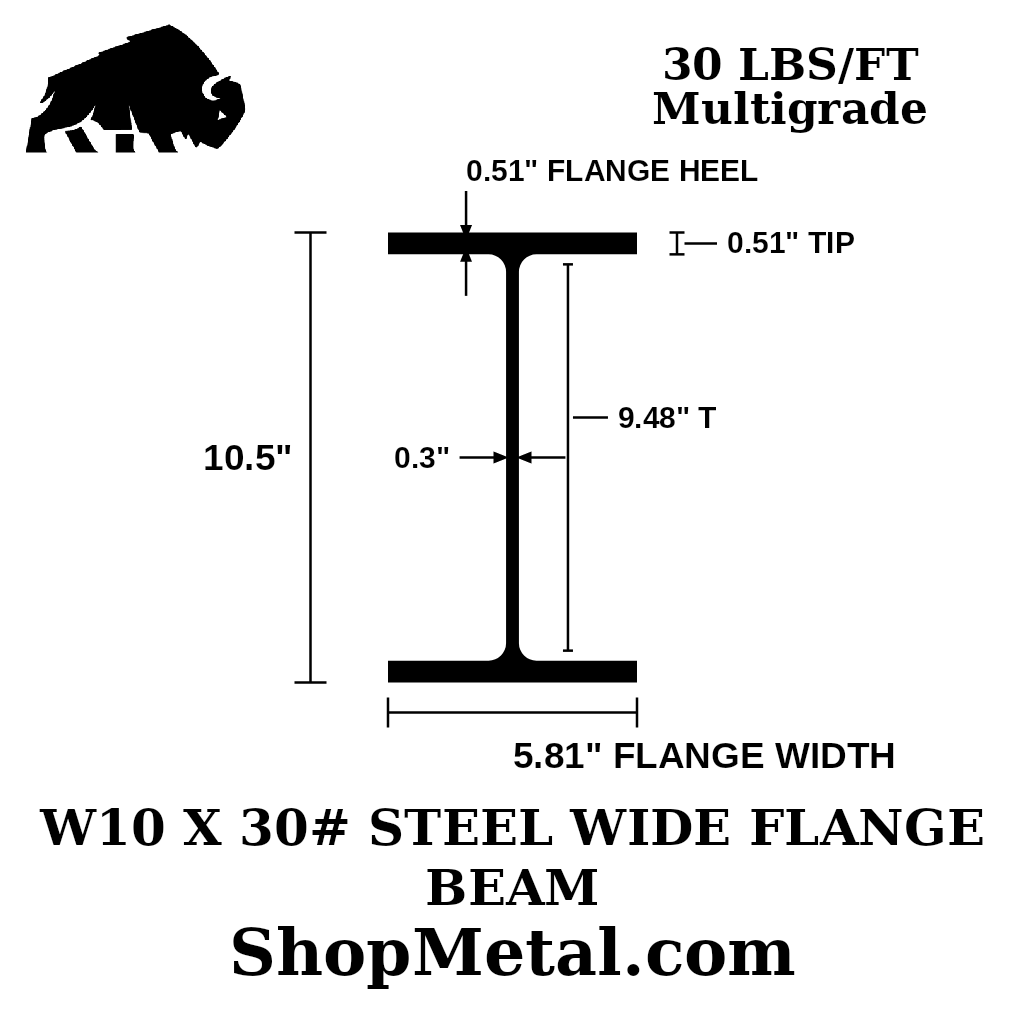

W10 X 30# Steel Wide Flange Beam
10.47 tall X 5.81 wide X .510 flange X .300 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W10 X 33# Steel Wide Flange Beam
9.73 tall X 7.96 wide X .435 flange X .290 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

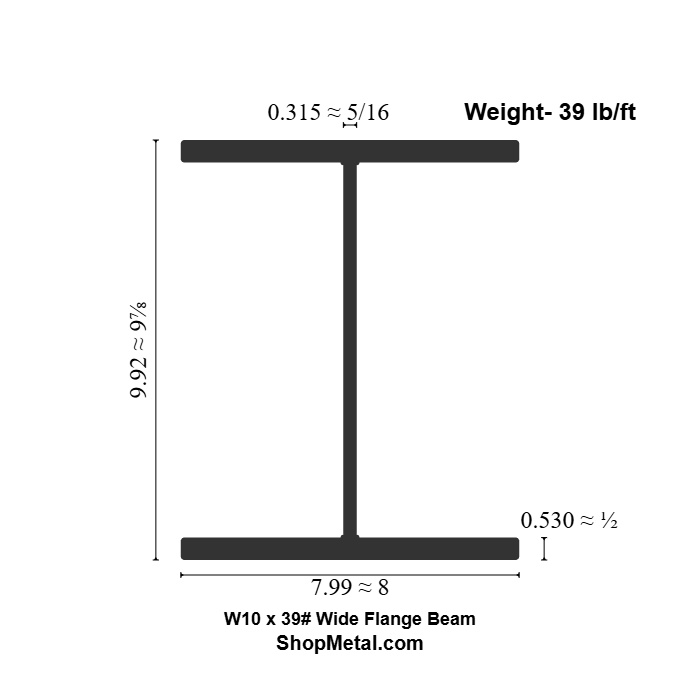

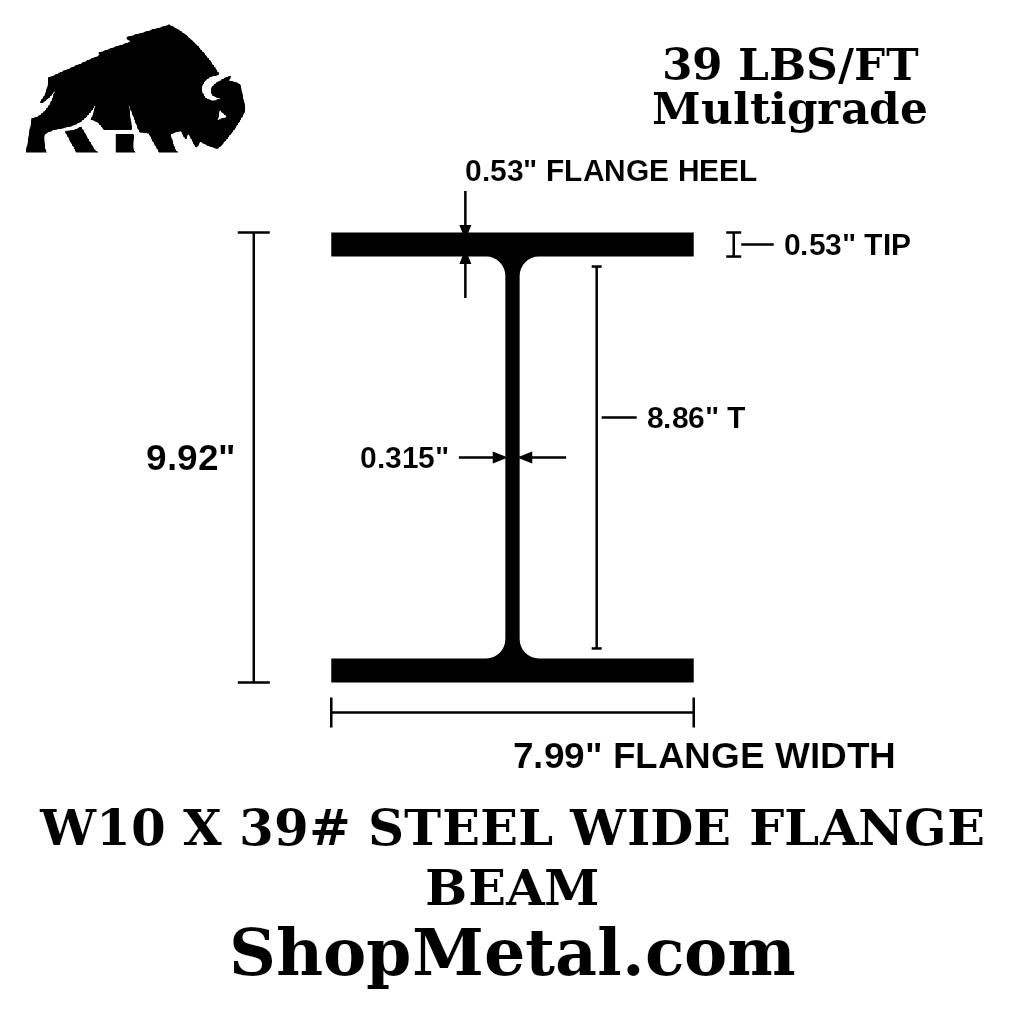

W10 X 39# Steel Wide Flange Beam
9.92 tall X 7.985 wide X .530 flange X .315 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

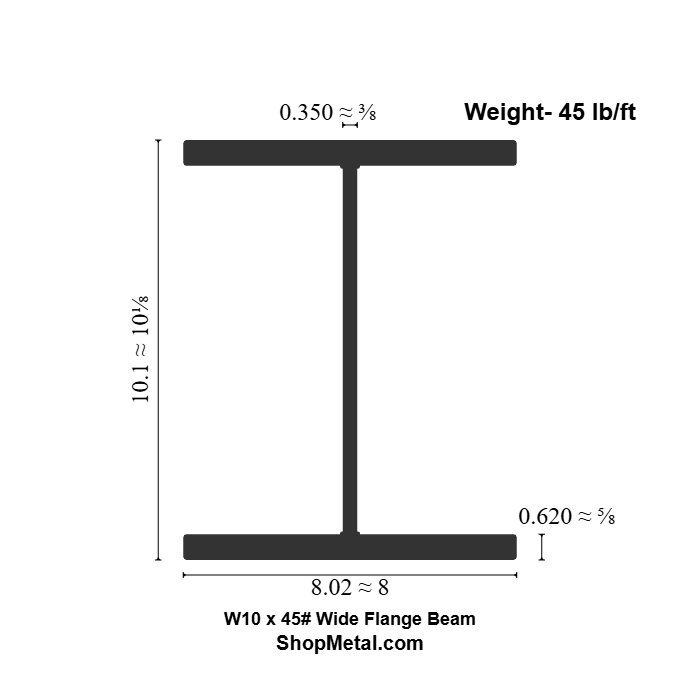

W10 X 45# Steel Wide Flange Beam
10.10 tall X 8.02 wide X .620 flange X .350 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

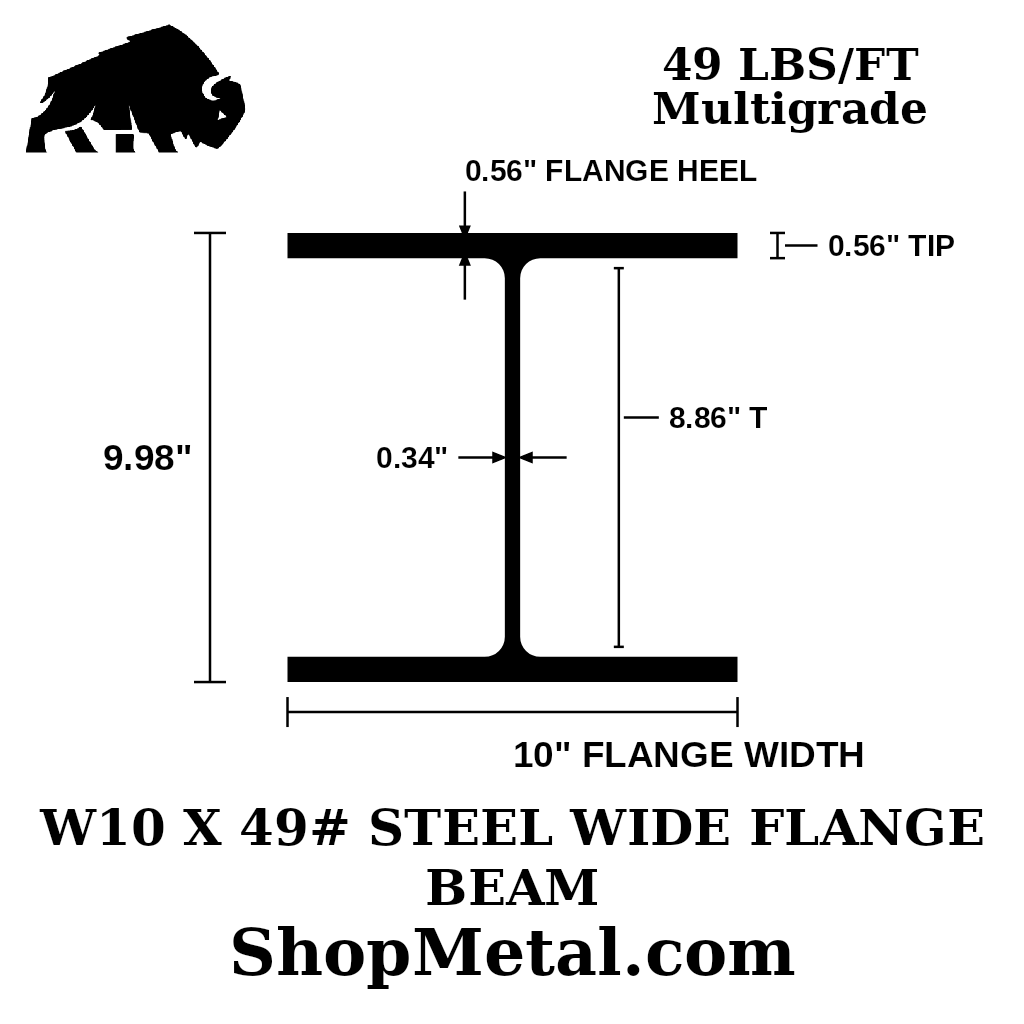

W10 X 49# Steel Wide Flange Beam
9.98 tall X 10.0 wide X .560 flange X .340 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

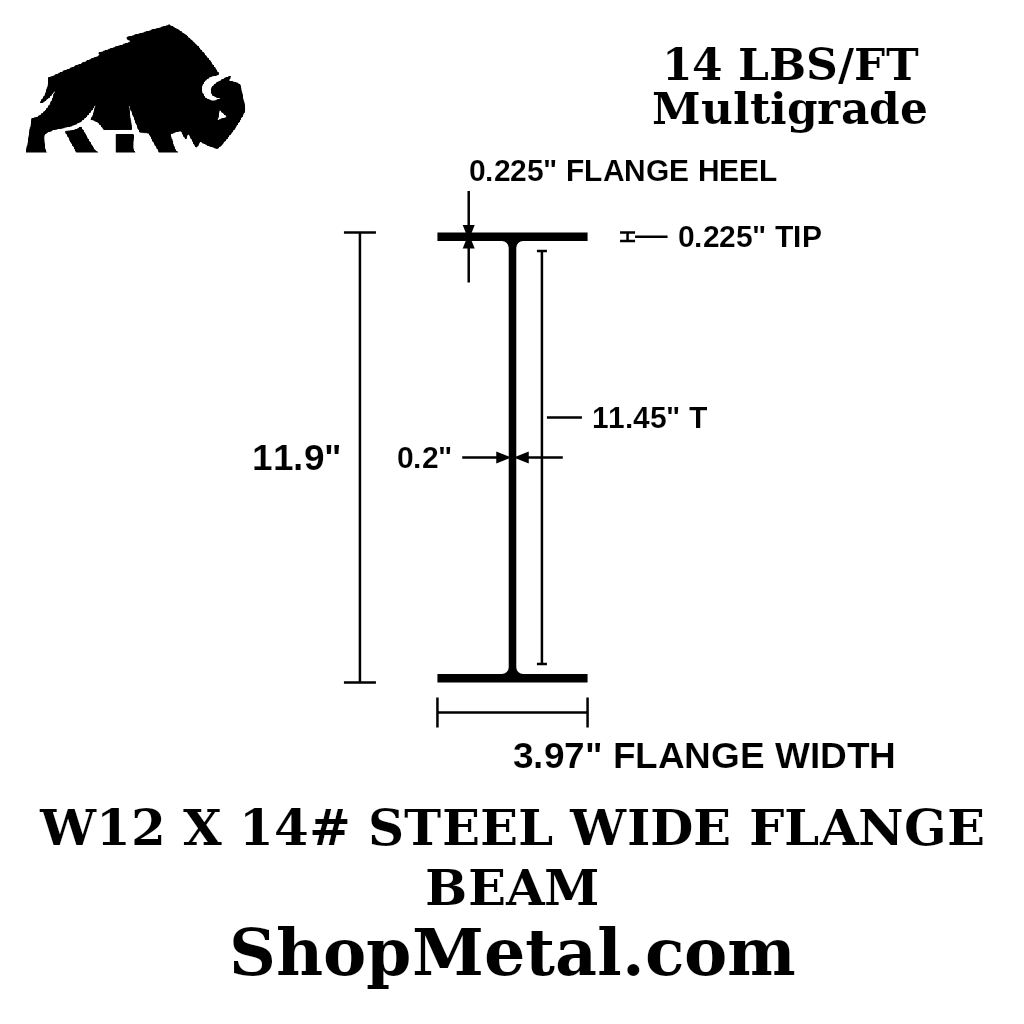

W12 X 14# Steel Wide Flange Beam
11.91 tall X 3.970 wide X .225 flange X .200 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

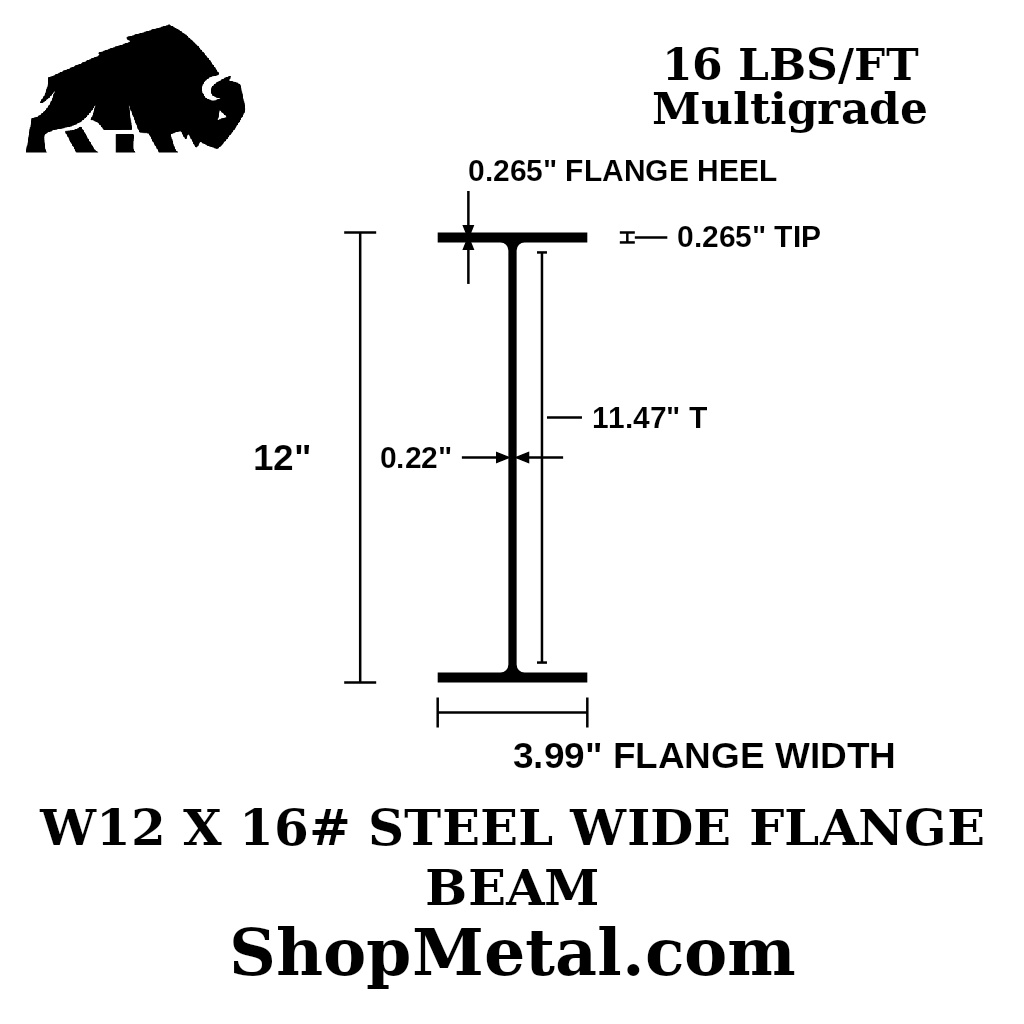

W12 X 16# Steel Wide Flange Beam
11.99 tall X 3.99 wide X .265 flange X .220 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

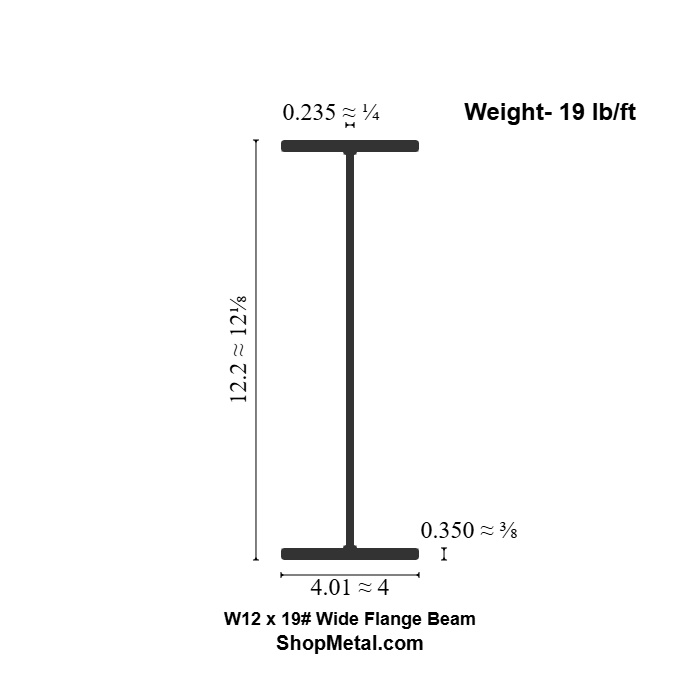

W12 X 19# Steel Wide Flange Beam
12.16 tall X 4.005 wide X .350 flange X .235 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

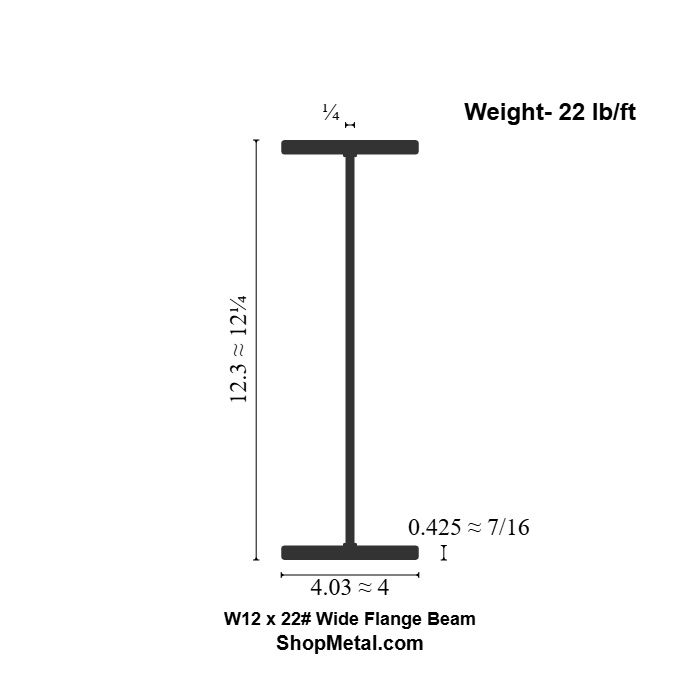

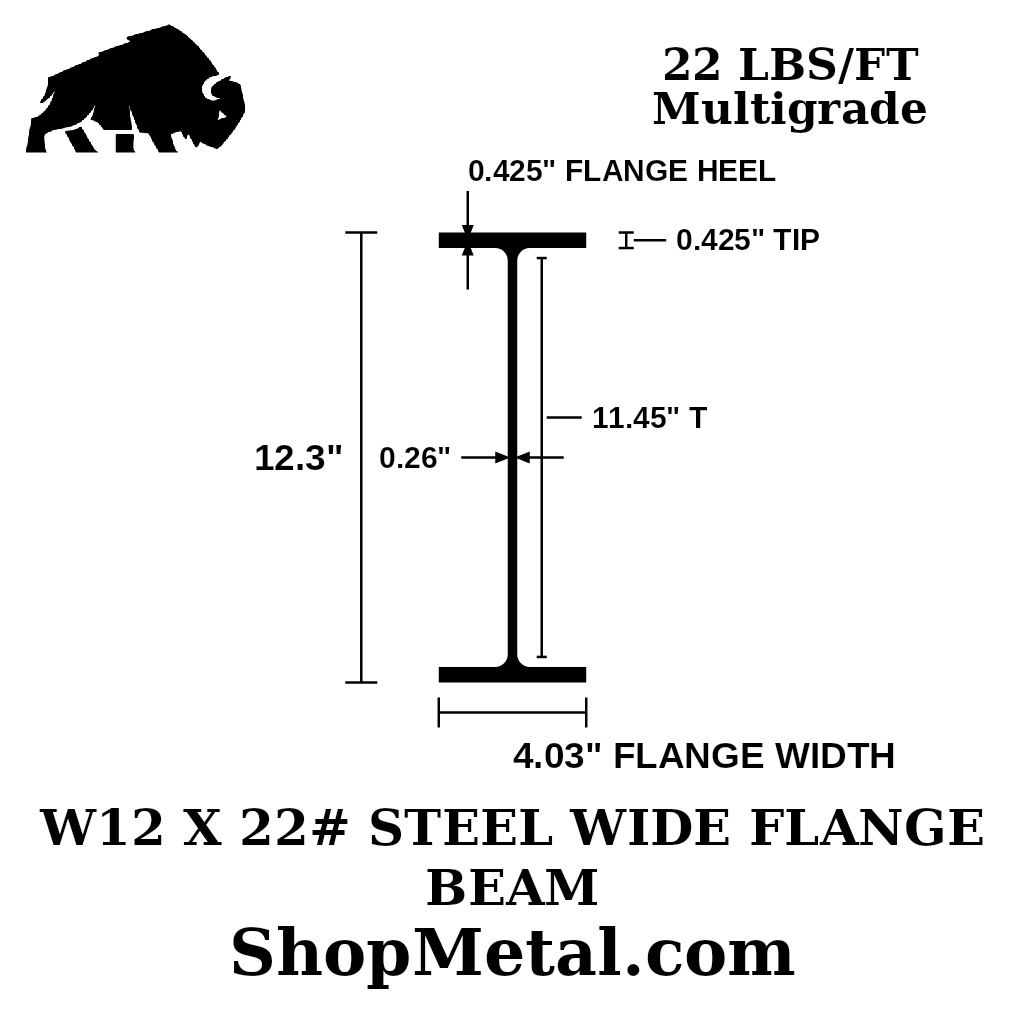

W12 X 22# Steel Wide Flange Beam
12.31 tall X 4.03 wide X .425 flange X .260 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

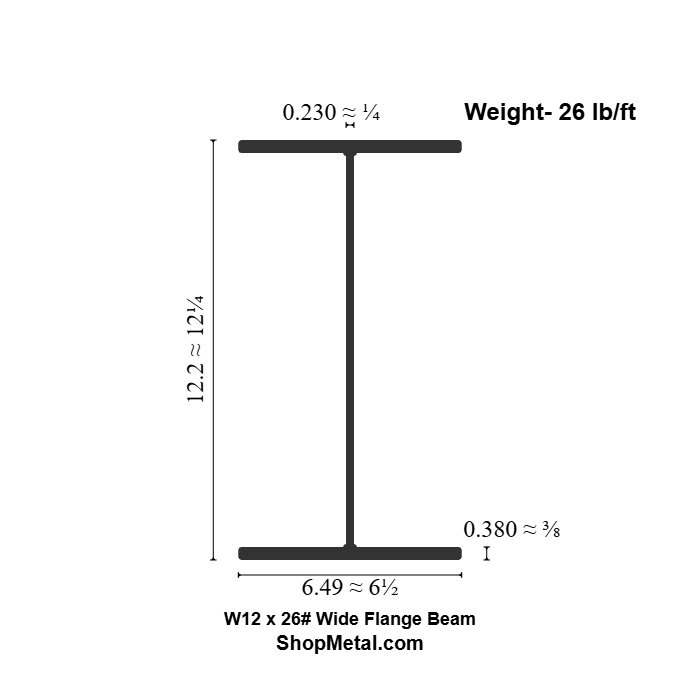

W12 X 26# Steel Wide Flange Beam
12.22 tall X 6.49 wide X .380 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W12 X 30# Steel Wide Flange Beam
12.34 tall X 6.52 wide X .440 flange X .260 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W12 X 35# Steel Wide Flange Beam
12.50 tall X 6.56 wide X .520 flange X.300 web C/D
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

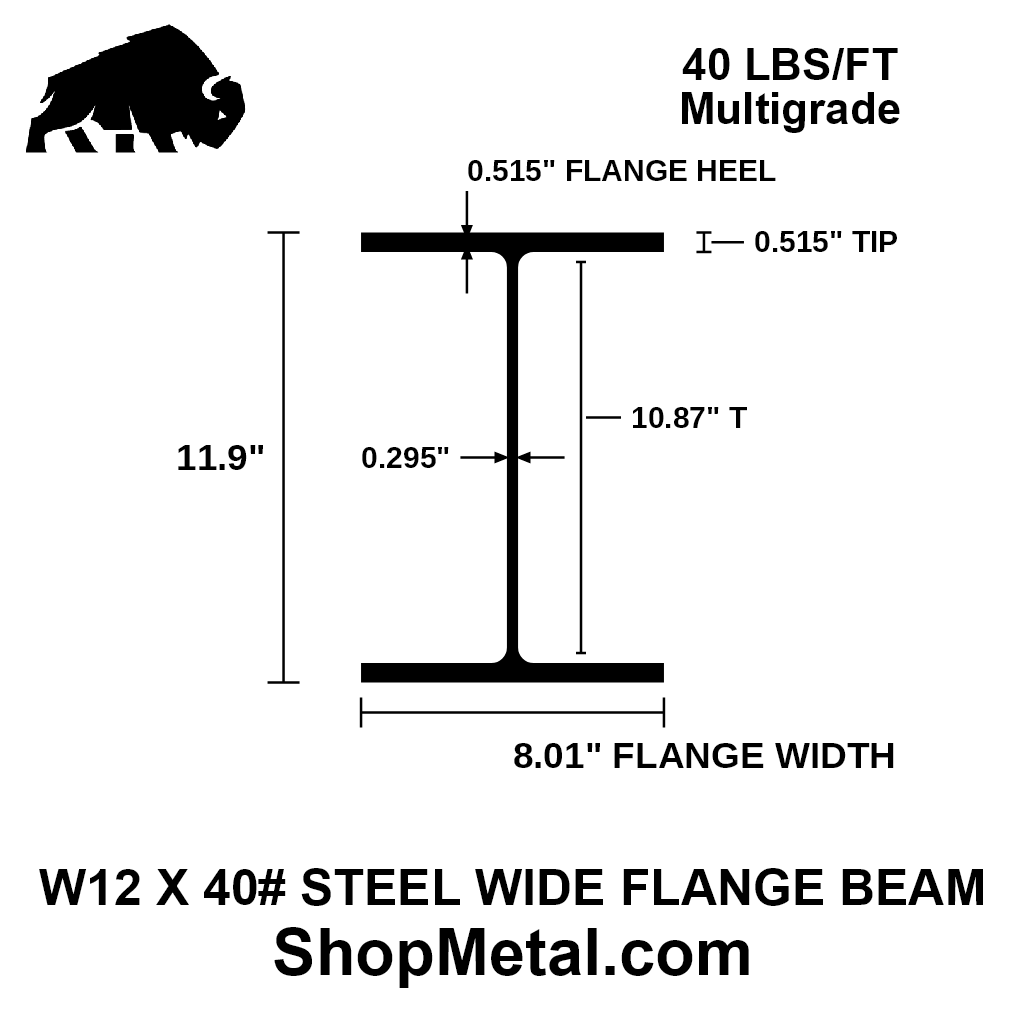

W12 X 40# Steel Wide Flange Beam
11.94 tall X 8.005 wide X .515 flange X .295 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

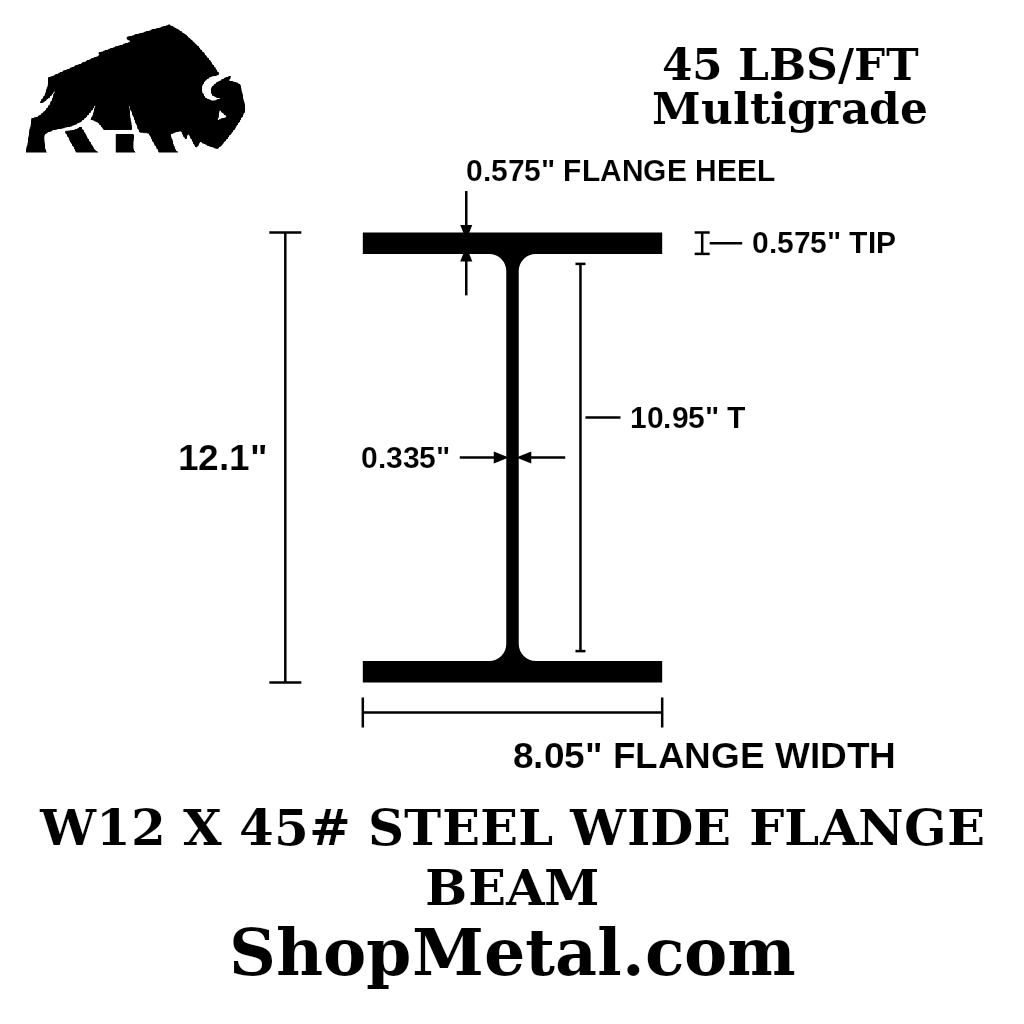

W12 X 45# Steel Wide Flange Beam
12.06 tall X 8.045 wide X .575 flange X .335 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

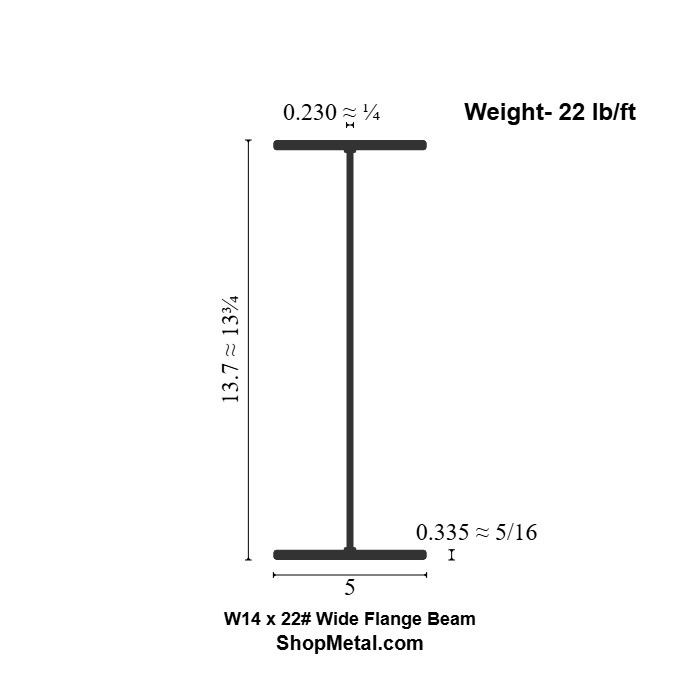

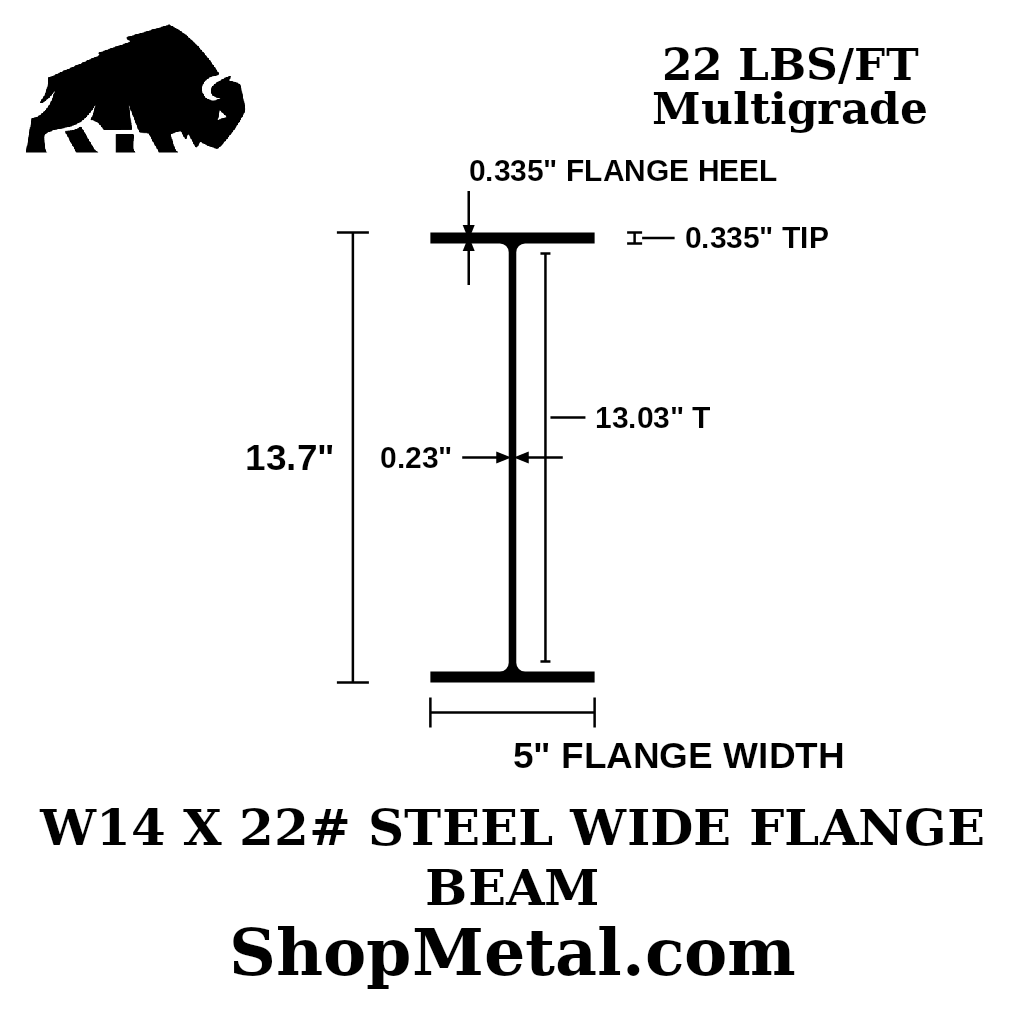

W14 X 22# Steel Wide Flange Beam
13.74 tall X 5 wide X .335 flange X .230 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

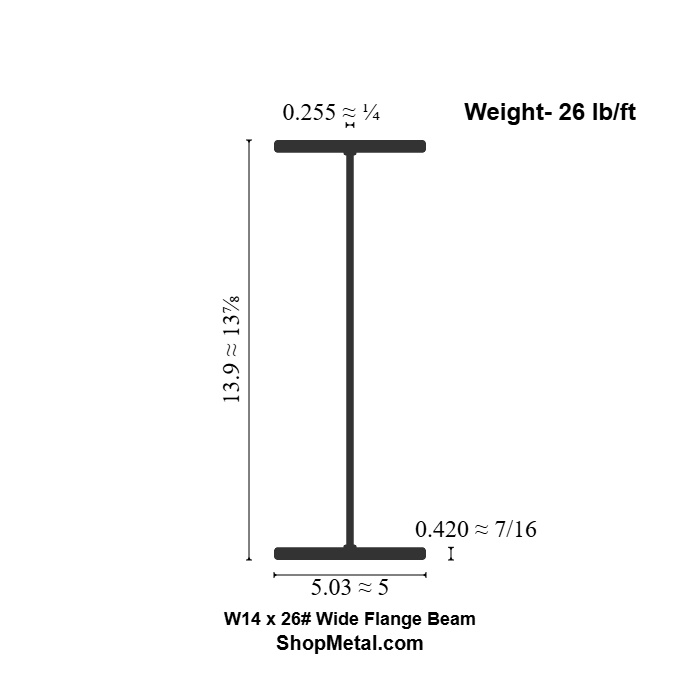

W14 X 26# Steel Wide Flange Beam
13.91 tall X 5.025 wide X .420 flange X .255 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W14 X 30# Steel Wide Flange Beam
13.84 tall X 6.730 wide X .385 flange X .270 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
W14 X 38# Steel Wide Flange Beam
14.10 tall X 6.77wide x .515 flange x .310 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

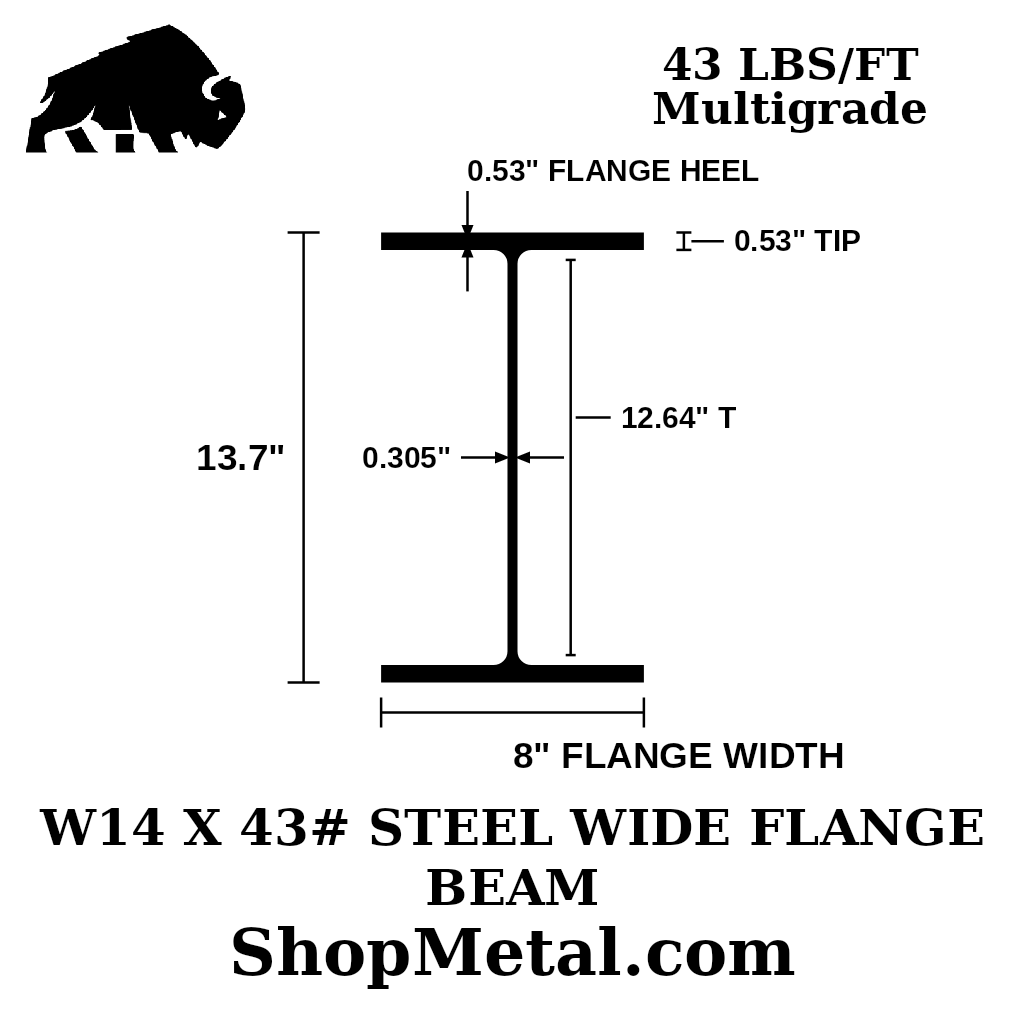

W14 X 43# Steel Wide Flange Beam
13.66 tall X 7.995 wide X .530 flange X .305 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

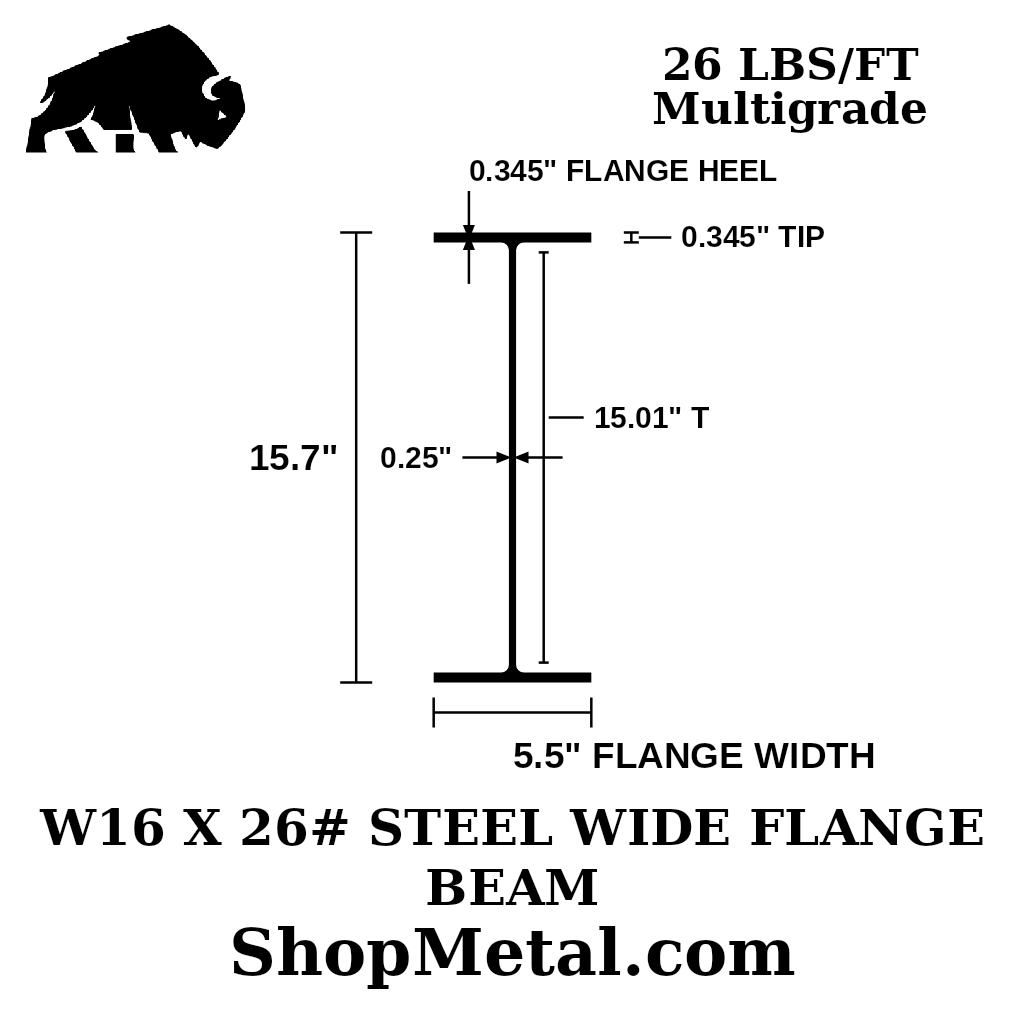

W16 X 26# Steel Wide Flange Beam
15.69 tall X 5.50 wide X .345 flange X .250 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

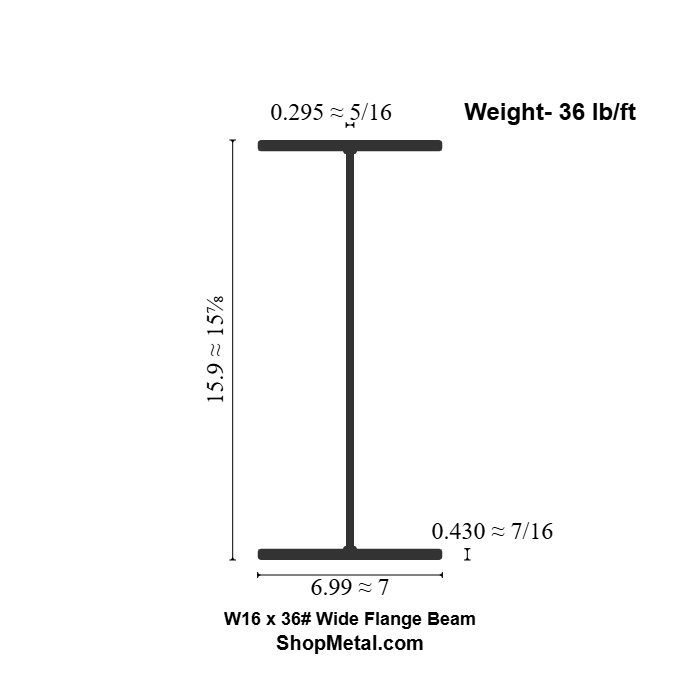

W16 X 36# Steel Wide Flange Beam
BARGAIN (USED) LQ
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |

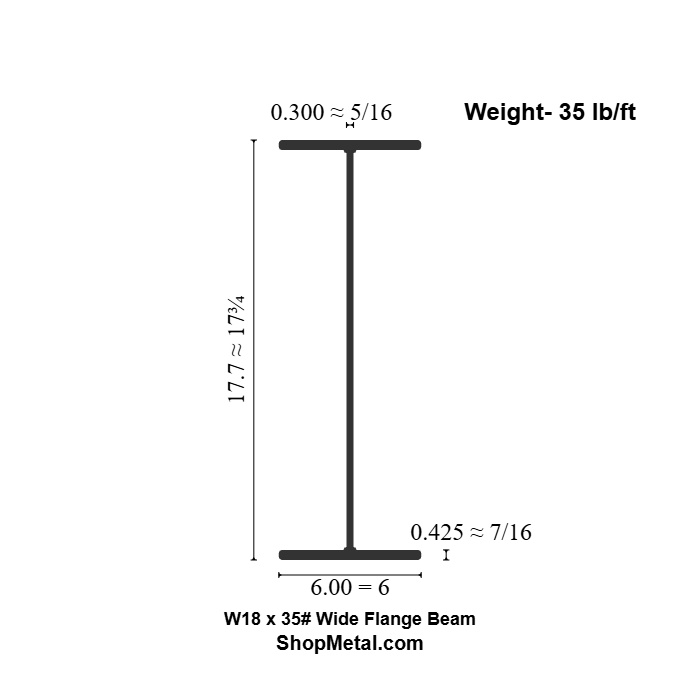

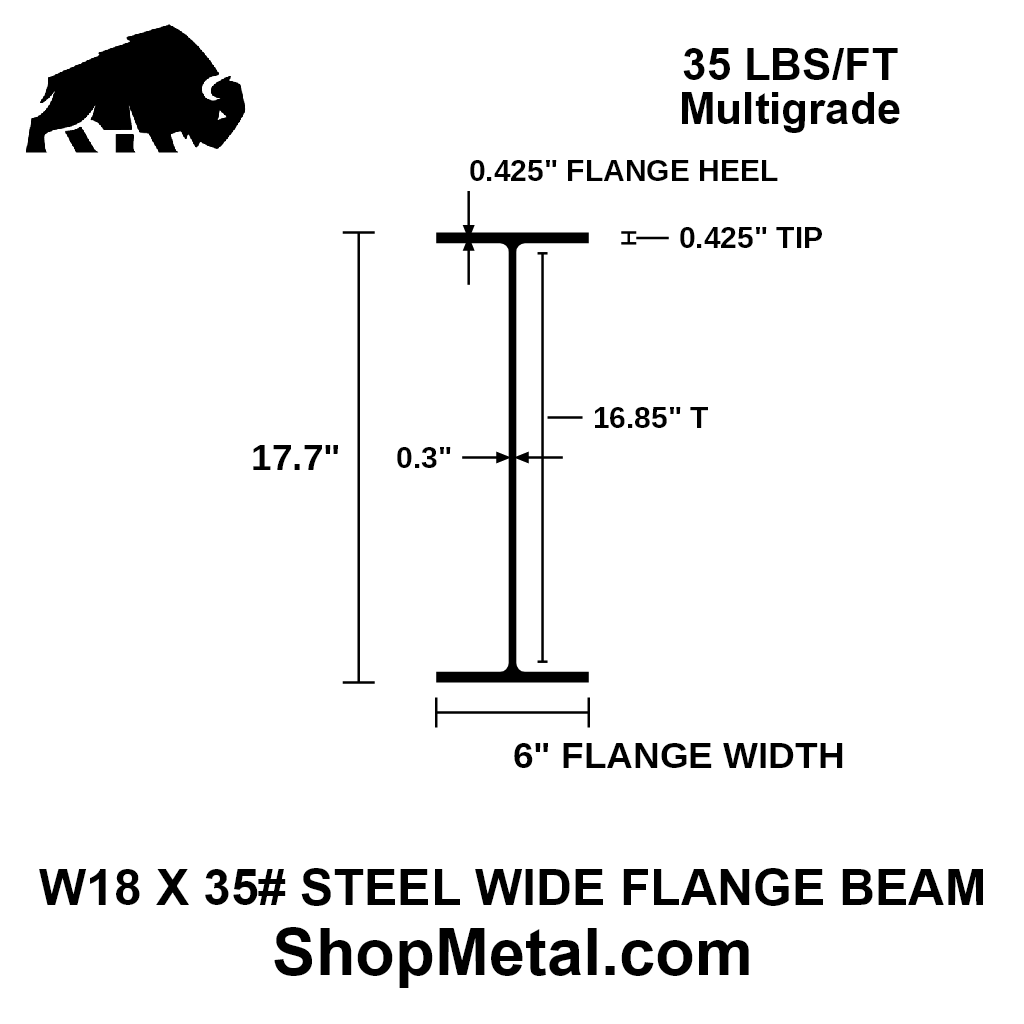

W18 X 35# Steel Wide Flange Beam
17.70 tall X 6.0 wide X .425 flange X .300 web
Length:
Select
Weight:
Select
Add Custom Cut Notes
| Price Breaks | |||
|---|---|---|---|
| Quantity | Price | $/# | $/FT |
