Stainless Steel Square Bar
Type 304/304L Stainless Steel Square Bar is a corrosion-resistant, solid bar with excellent strength and machinability. It is commonly used in structural components, machine parts, and architectural frameworks where durability and surface quality are critical.
Stainless Steel Square Bar is non-magnetic in the annealed condition and not hardenable by heat treatment, but it can be strengthened through cold working. This makes it a flexible option for industrial and fabrication uses.
Type 304L Stainless Square Bar features a low carbon content (0.03% max), which helps prevent carbide precipitation during welding. This ensures long-lasting corrosion resistance, especially in welded joints.
Type 304/304L Stainless Steel Square Bar is a corrosion-resistant, solid bar with excellent strength and machinability. It is commonly used in structural components, machine parts, and architectural frameworks where durability and surface quality are critical.
Stainless Steel Square Bar is non-magnetic in the annealed condition and not hardenable by heat treatment, but it can be strengthened through cold working. This makes it a flexible option for industrial and fabrication uses.
Type 304L Stainless Square Bar features a low carbon content (0.03% max), which helps prevent carbide precipitation during welding. This ensures long-lasting corrosion resistance, especially in welded joints.
Specifications
Available Stock Sizes
1ft, 2ft, 4ft, 6ft, 8ft, 10ft, 12ft, 20ft, or Custom Cut to Size.
Chemical Composition
Carbon: 0.08% max, Chromium: 18-20%, Nickel: 8-10.5%, Manganese: 2% max, Phosphorus: 0.045% max, Sulfur: 0.03% max, Silicon: 1% max, Iron: Balance.
Measurement Guide

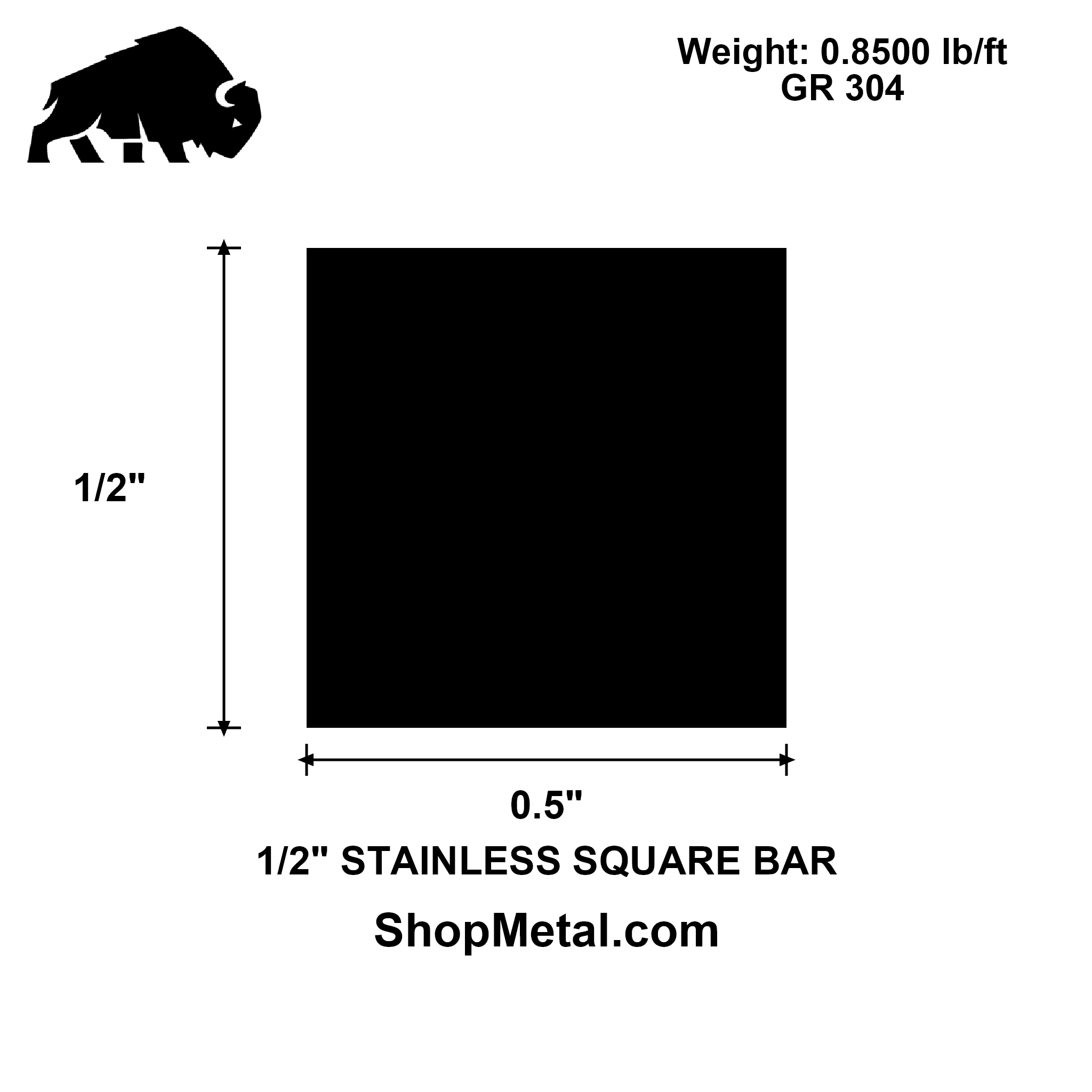

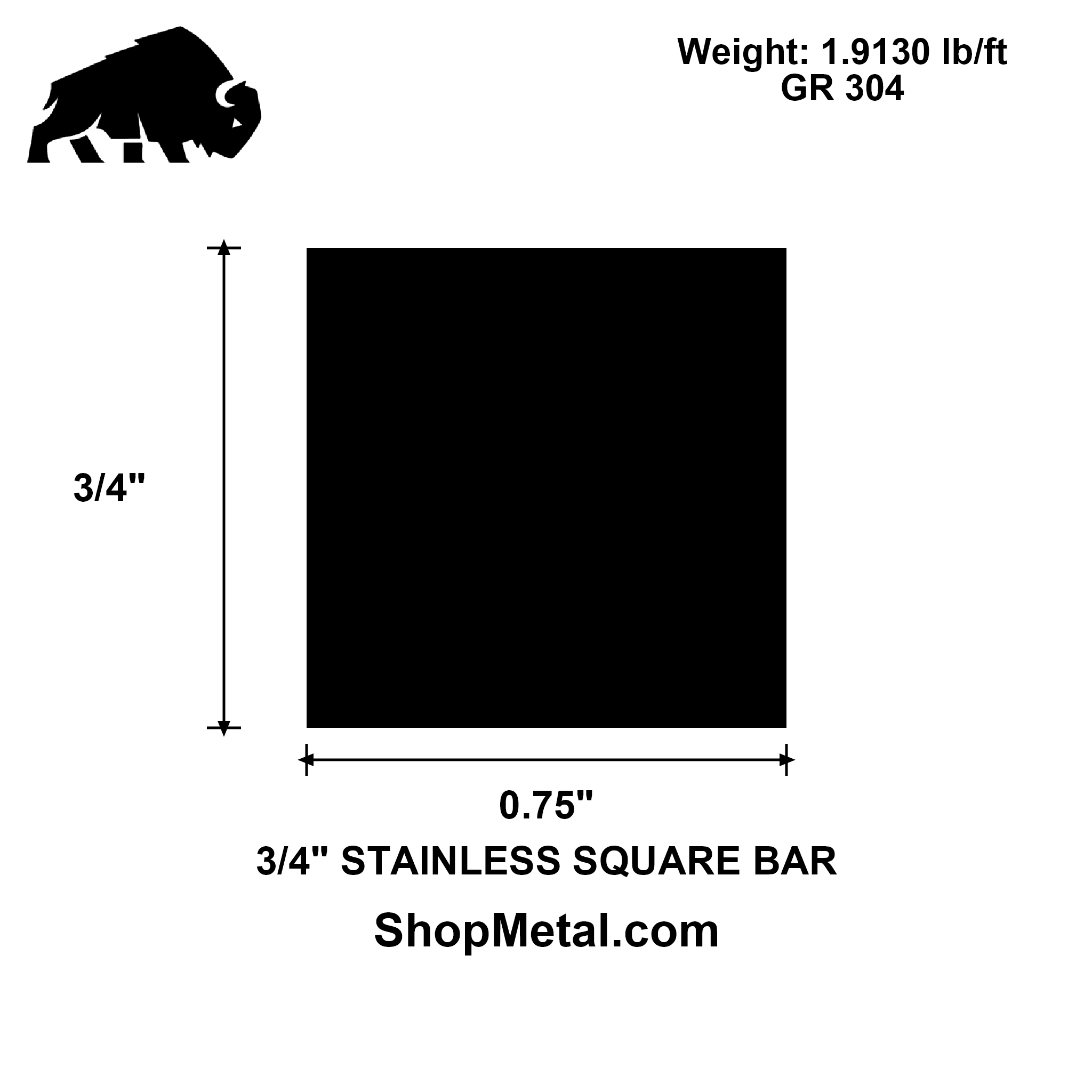

Thickness (A) x Width (B) x Length.
PageTitle
304 304L Stainless Steel Square Bar, Solid Corrosion Resistant Stock for Structural Fabrication
Specifications
ASTM A276, AISI 304/304L.
Surface Finish
Mill Finish, Slightly Grainy Surface, Non-reflective.
Workability
Easy to Weld, Moderate Cutting, Forming, and Machining.
Additional Notes
Stock lengths may vary +/- 1/4". Custom cut tolerances available.
Available in both hot rolled and cold finished options depending on requirements.
Available in both hot rolled and cold finished options depending on requirements.
Applications
Used in food and beverage processing, chemical processing, marine, aerospace, medical, and structural applications.
Common uses include braces, supports, shafts, axles, key stock, jigs, sculptures, and architectural applications.
Common uses include braces, supports, shafts, axles, key stock, jigs, sculptures, and architectural applications.
Mechanical Properties
Ultimate Tensile Strength: 73,200 psi (310 MPa).
Yield Tensile Strength: 31,200 psi (276 MPa).
Brinell Hardness: 123.
Rockwell Hardness: B70.
Density: 0.289 lb/in³ (8.0 g/cc).
Melting Point: 2,550 - 2,651°F (1,400 - 1,455°C).
Yield Tensile Strength: 31,200 psi (276 MPa).
Brinell Hardness: 123.
Rockwell Hardness: B70.
Density: 0.289 lb/in³ (8.0 g/cc).
Melting Point: 2,550 - 2,651°F (1,400 - 1,455°C).
