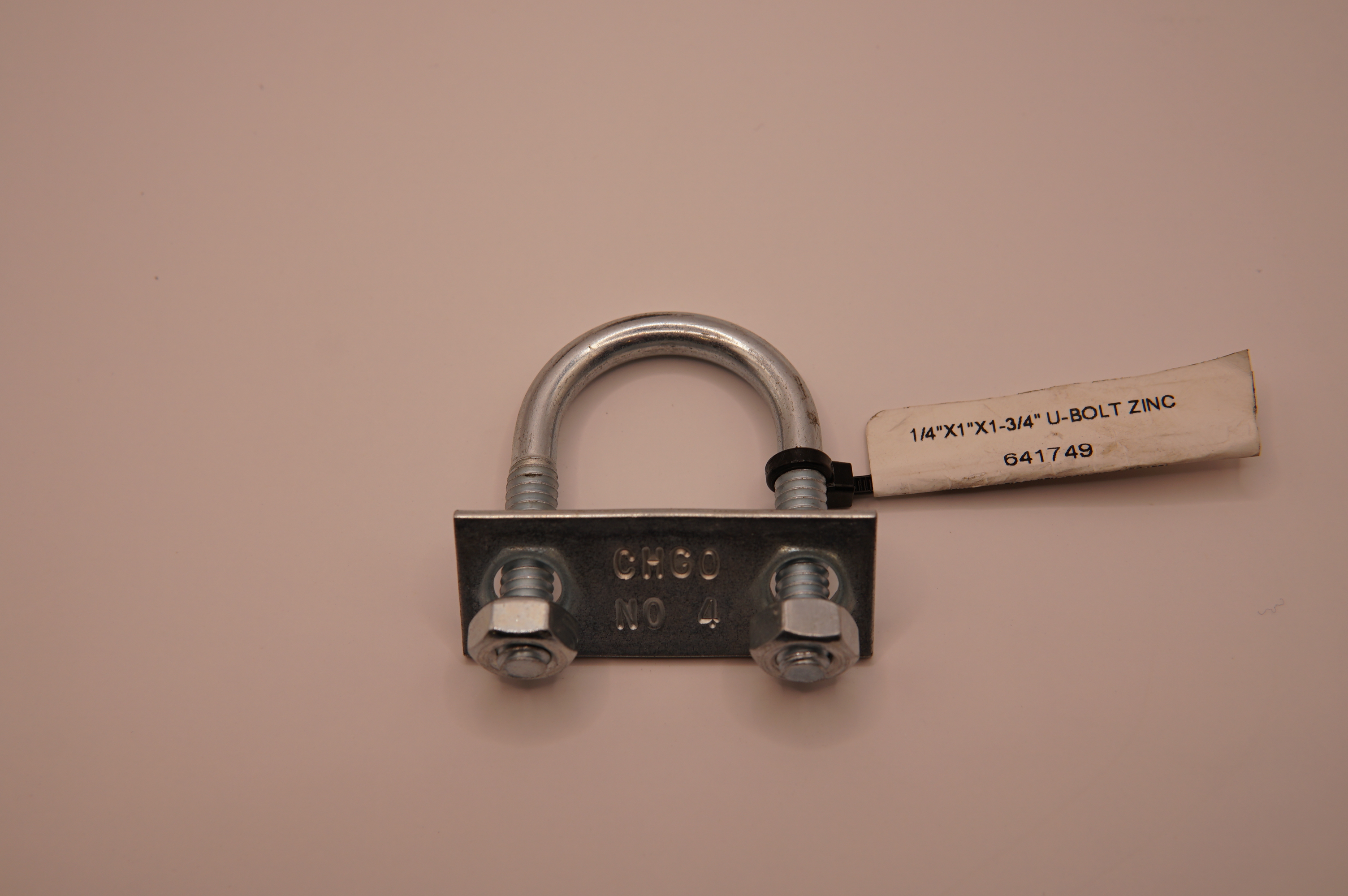

1/4" X 1" X 1-3/4" U-Bolt w/ MP Zinc
Item Number: 502146
$1.72
/ Each
Package Quantity:
1
- Round bend U-bolt sized for 1/2" nominal steel or wrought iron pipe. 1/4"-20 NC rolled thread. Anchors pipe, conduit, tubing, round bar, cable or rope to a flat surface.
- Inside 1" x 1-3/4", outside 1-1/2" x 2", 1" of thread on each leg.
- Zinc plated steel. Plate 3/4" x 1-15/16" x 1/16". Two hex nuts included.
- Thread 1/4"-20 UNC, NC rolled, 1" of thread on each leg
- Inside 1" wide x 1-3/4" deep; overall 1-1/2" wide x 2" long
- Mounting plate 3/4" wide x 1-15/16" long x 1/16" thick, low carbon cold rolled steel with rounded edges
- Supplied with mounting plate and two hex nuts
- Zinc plated for corrosion resistance
- Fits 1/2" nominal steel or wrought iron pipe (0.840" OD)
- Includes mounting plate and two hex nuts - ready to install
- Zinc plated low carbon steel for corrosion resistance
$1.72
/ $1.72 Each
In Stock
Details
Vendor
Chicago Hardware (1231)
Weight (lbs)
0.1
Thread Size
1/4"-20 UNC
Thread Length (TL)
1"
Inner Dimensions (ID)
1/4" X 1" X 1-3/4"
Overall Dimensions (OD)
1/4" X 1-1/2" X 2"
Plate Dimensions (P)
1/16" X 3/4" X 1-15/16"
For Pipe Size
1/2" nominal
Bend Type
Round Bend
Material
Low Carbon Steel
Finish
Zinc Plated
Includes
U-bolt, mounting plate, 2 hex nuts
Key Features
- Fits 1/2" nominal steel or wrought iron pipe (0.840" OD)
- Includes mounting plate and two hex nuts - ready to install
- Zinc plated low carbon steel for corrosion resistance
- 1/4"-20 NC rolled threads, 1" of thread on each leg
- Round bend profile for pipe, conduit, tubing, round bar and cable
